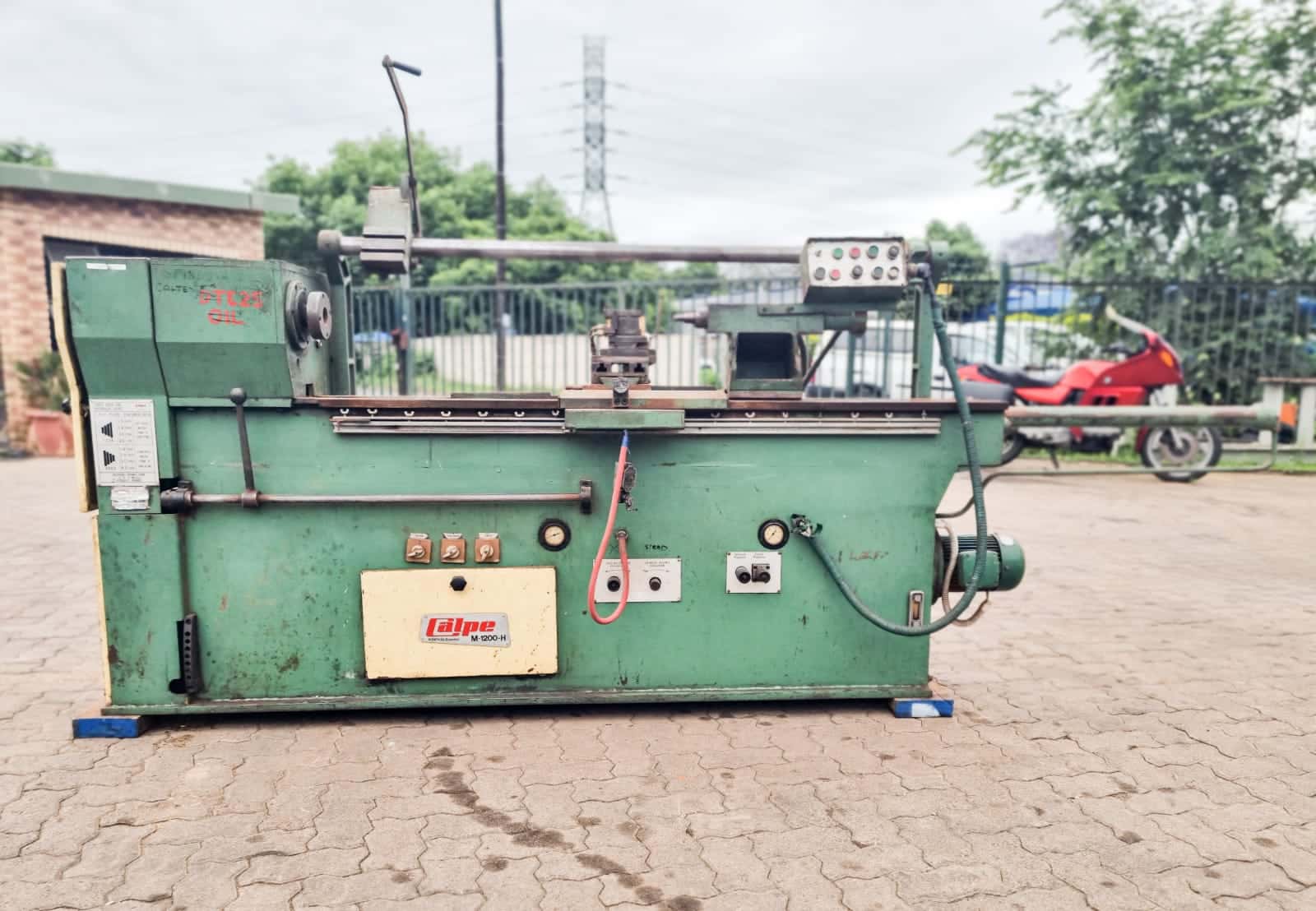

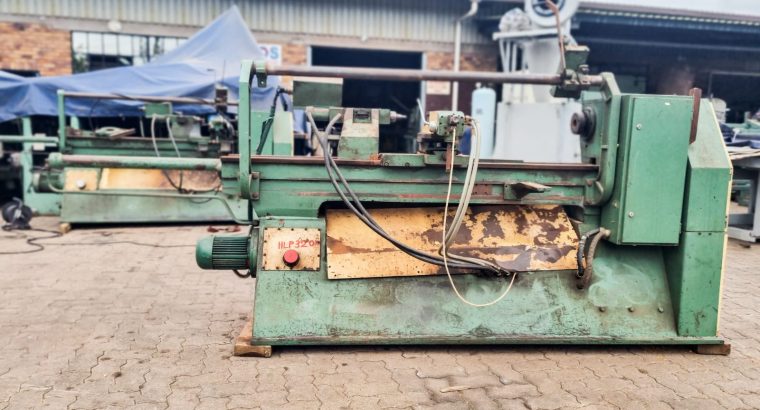

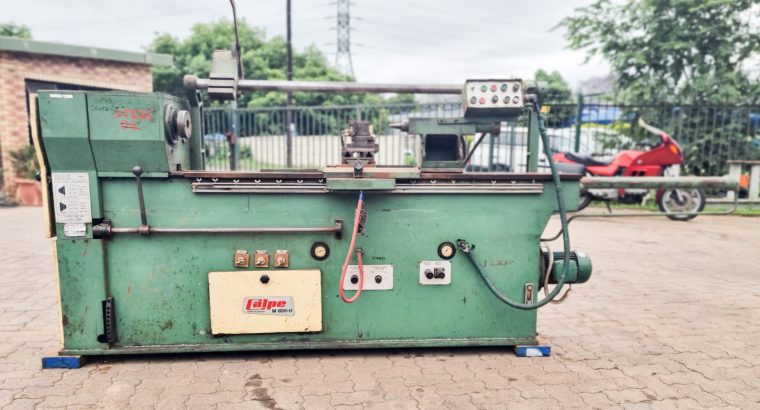

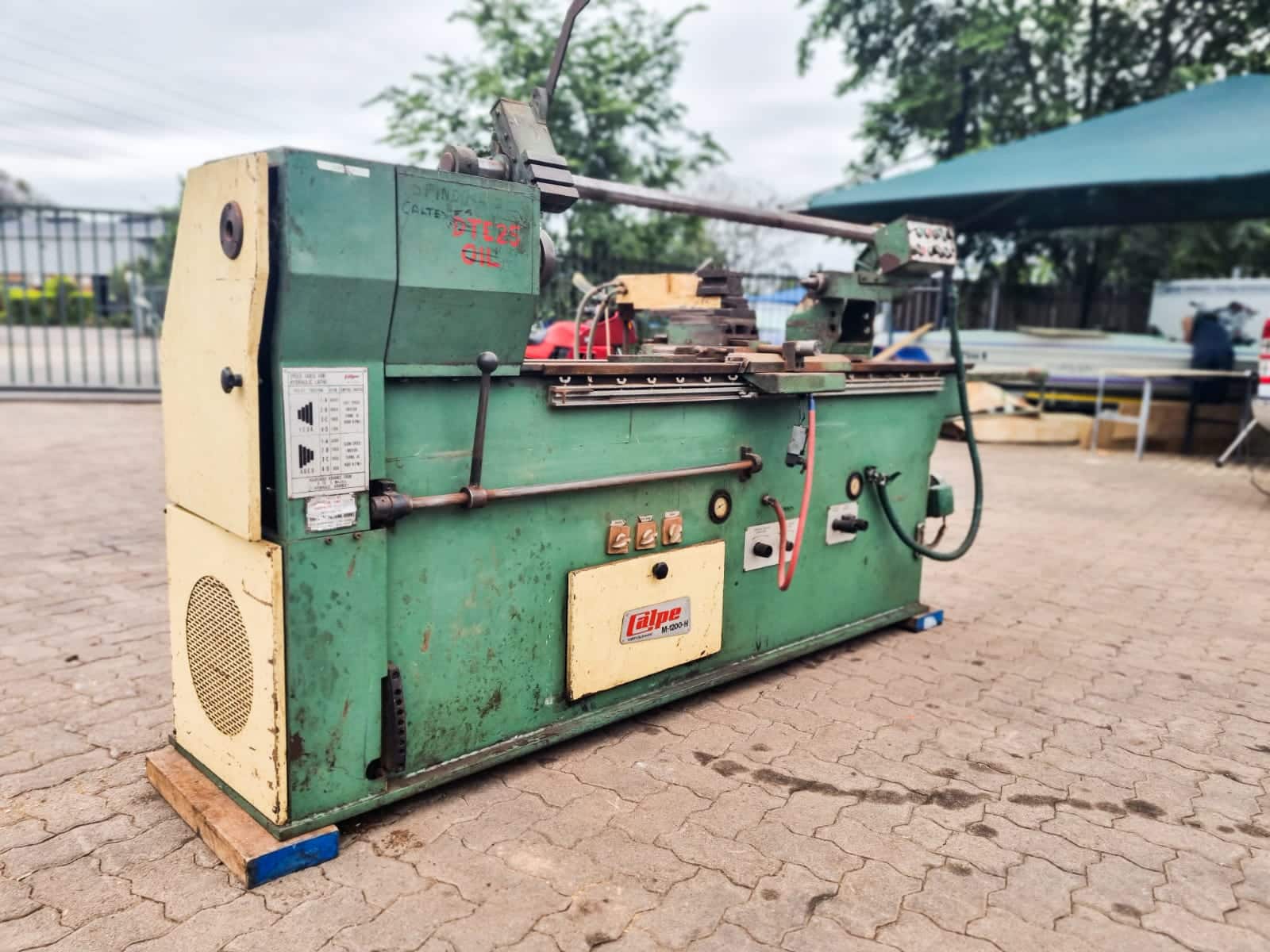

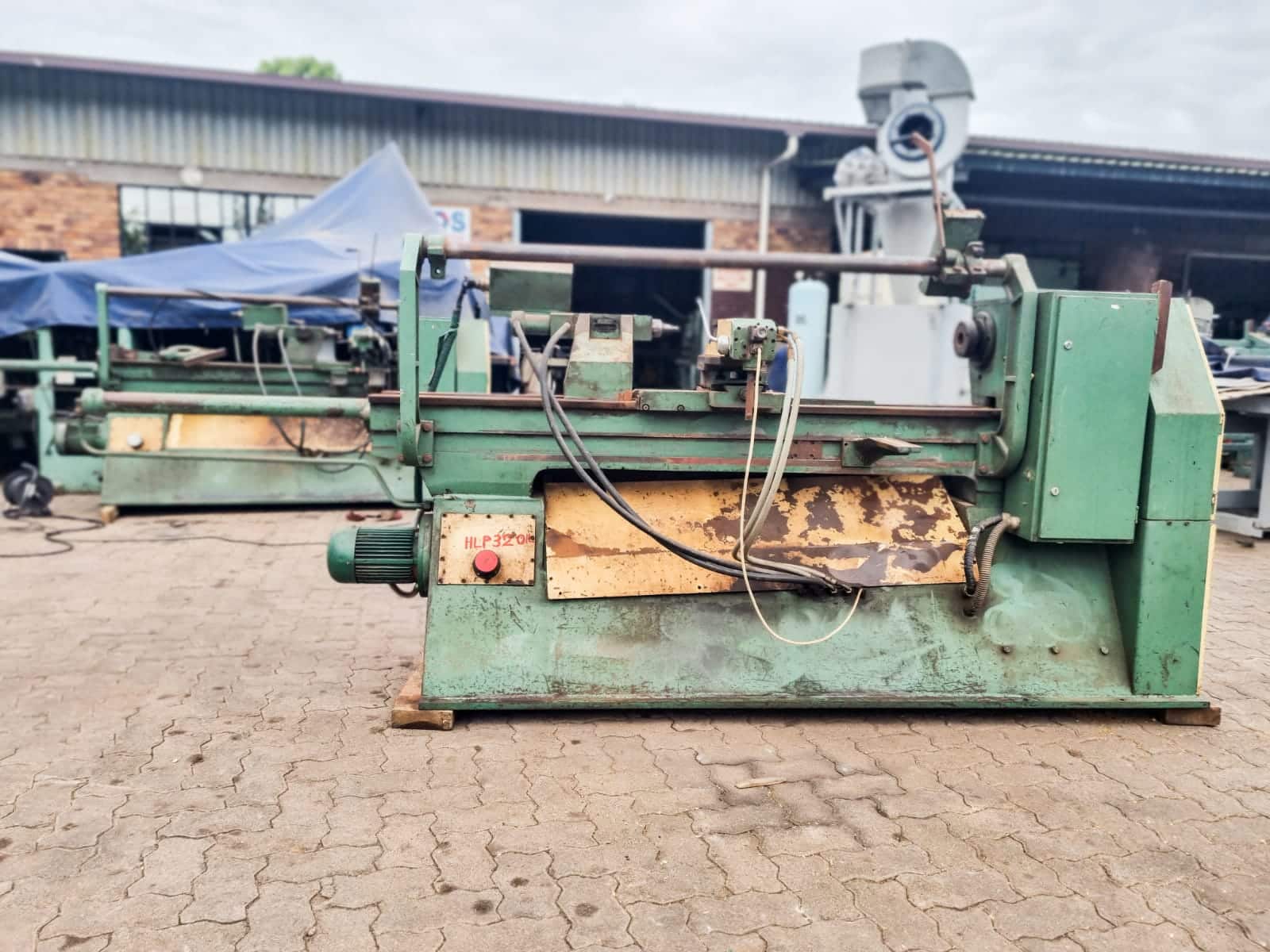

Wood Copy Lathe CALPE M-1200-H 4.6kW 8-sp
Hydraulic Wood Copy Lathe;
Make: CALPE
Made in Spain;
Model: M.1200H;
Category: Wood Lathes
Centre to Centre: maximum 1.200 mm;
Swing over bed: 180 mm;
Workpiece, with copier: maximum Ø-200 mm;
Workpiece, without copier: maximum Ø-350 mm;

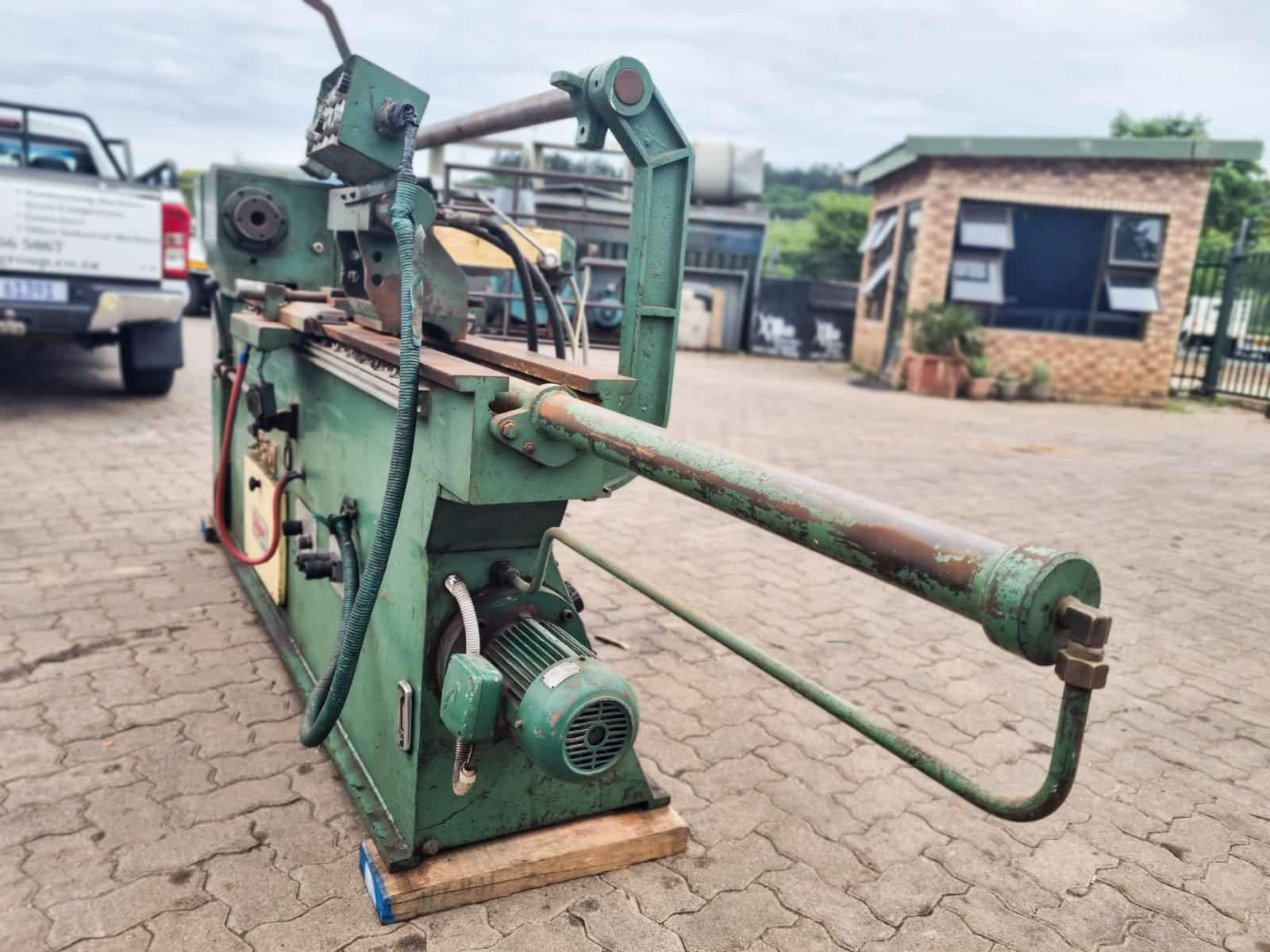

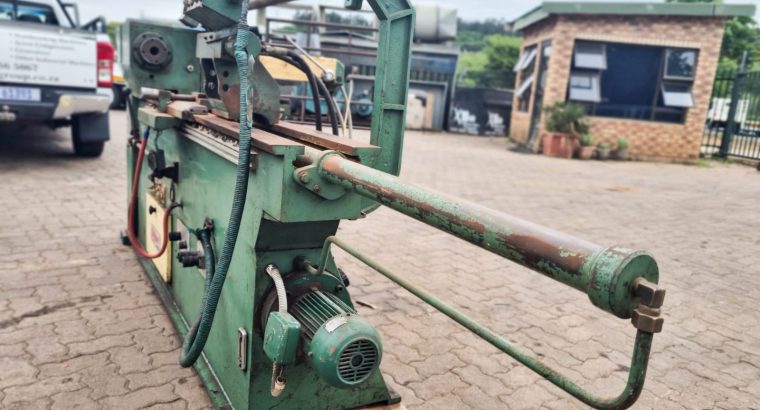

Hydraulic Copy Attachment, with point-chisel, from template at back;
Hydraulic forward & reverse,
Carriage speed: variable, 0 – 10 m / min;
Copy Table: 2x, manual, for profile knifes;
Electric motor: 3.6 kW + 4.6 kW, 1420 / 2850 rpm, 10 Amp, 380 Volt,
Hydraulic power pack motor: 1.5 kW, 1400 rpm, 380 Volt,
Includes: Steady rest;
Running speed: 8-speed;
Fast speed: 6.000 – 4.900 – 3.900 – 1.700 rpm;
Low speed: 3.000 – 2.450 – 1.950 – 850 rpm;
Forward & Reverse;
Weight: ca. 800 kg;
Overall dimensions: 3.000 x 1.250 x 1.500 mm H (+ lever 1.700 mm);
E.&O.E
Price: used, reconditioned: R78.000 + vat
