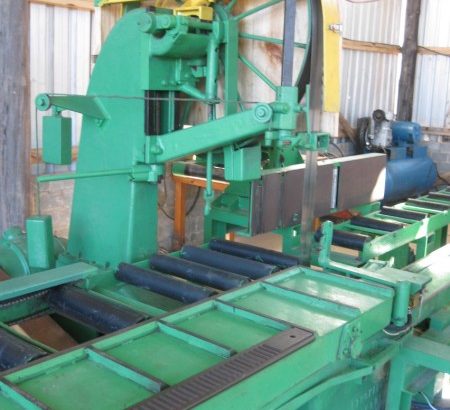

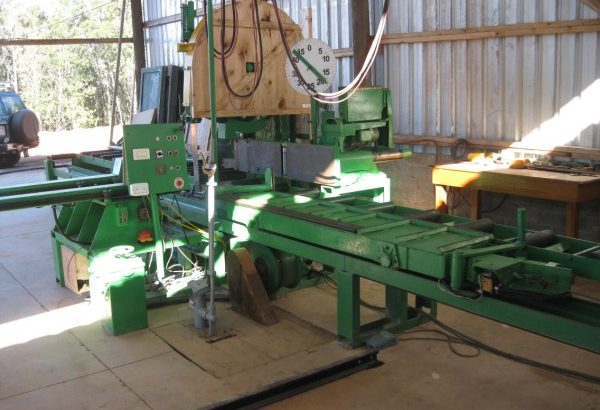

Vertical Breakdown Bandsaw with Log Carriage, DANCKAERT – MEM

Designedfor breakdown of short logs;

Freerunning carriage for flexibility;

Highproduction through pneumatic and electric functions;

Totalweight: ± 4.000 kg;

Head Rig: DANCKAERT;

Type: Leftcutting;

Wheels:1150 x 90 mm; top-wheel open, bottom-wheel solid;

Throat:  570mm;

Electricmotor:  11 kW, 1450 rpm, 3 x V-belt,multistep slow-starter Y-Y-∆-∆;

Inclusive:2 x 4” blades (new) = 7.200 x 100 mm.

Log Carriage: MEM;

TableCarriage: 2.100 mm, (can do 2.300 mm);

Running on:U-profile rails, 4 x 2.000 mm = 8.000 mm;

Variableforward and reverse of carriage by electric winch;

Electrical motorgearbox: 4 kW;

Variablegearbox: 25 – 0 – 25 rpm;

Variablecutting speed; carriage return speed 0-40 m/min;

Pneumaticlog clamping: clamps from head; length-stop adjustable;

Build in:pneumatic carriage push-off from saw blade (save return);

Doublepneumatic rubber-wheel pusher to press log against fence;

Electricaladjustable guiding fence: 1470 mm, motor 2.2 kW;

Clock:reading 0 – 50 cm, max 55 cm;

Electricaloutfeed conveyor roller: motor 0.55 kW;

E.&O.E.

Price: used,reconditioned, ex Kranskop, KZN: R125.000 + vat
