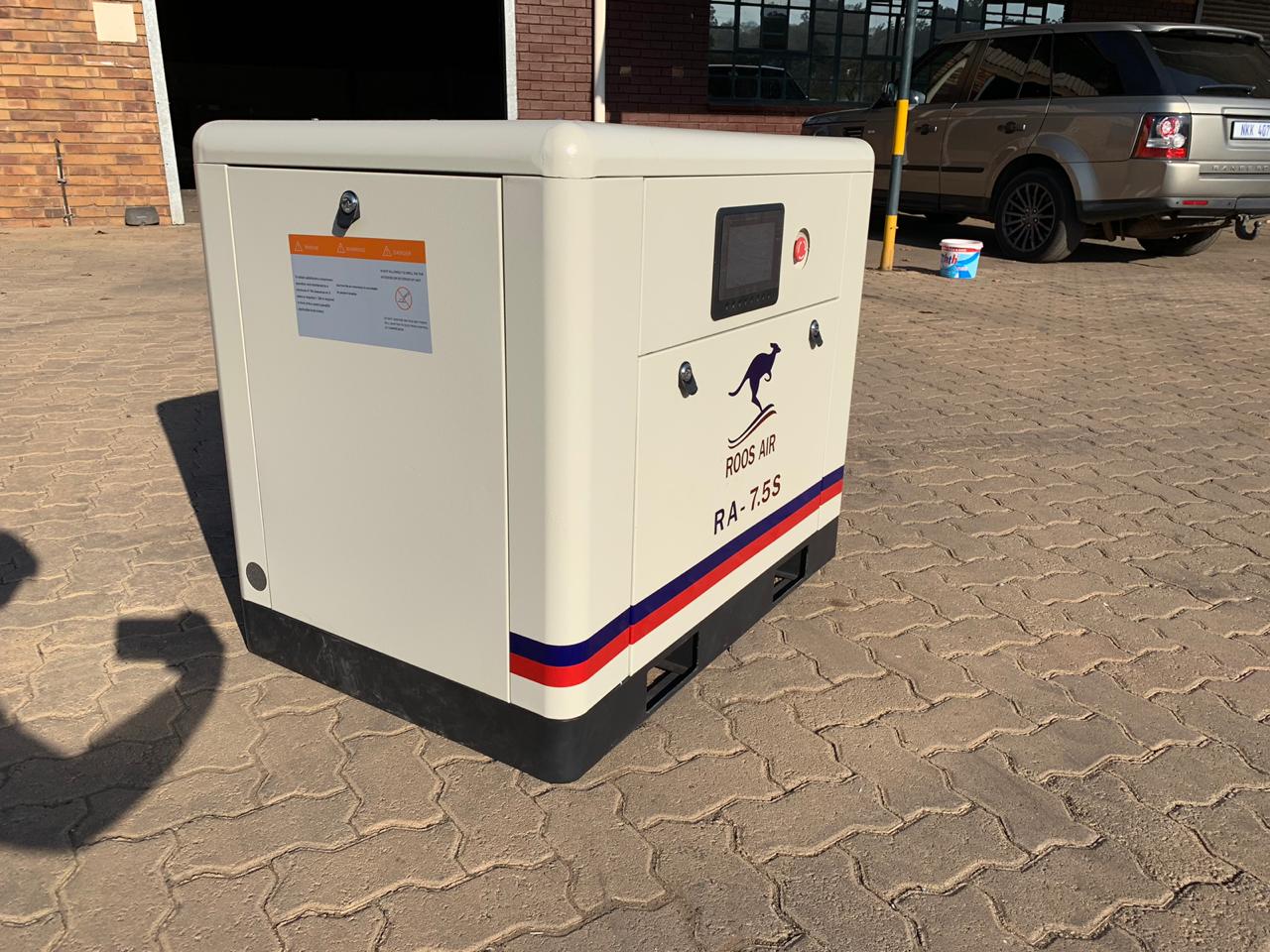

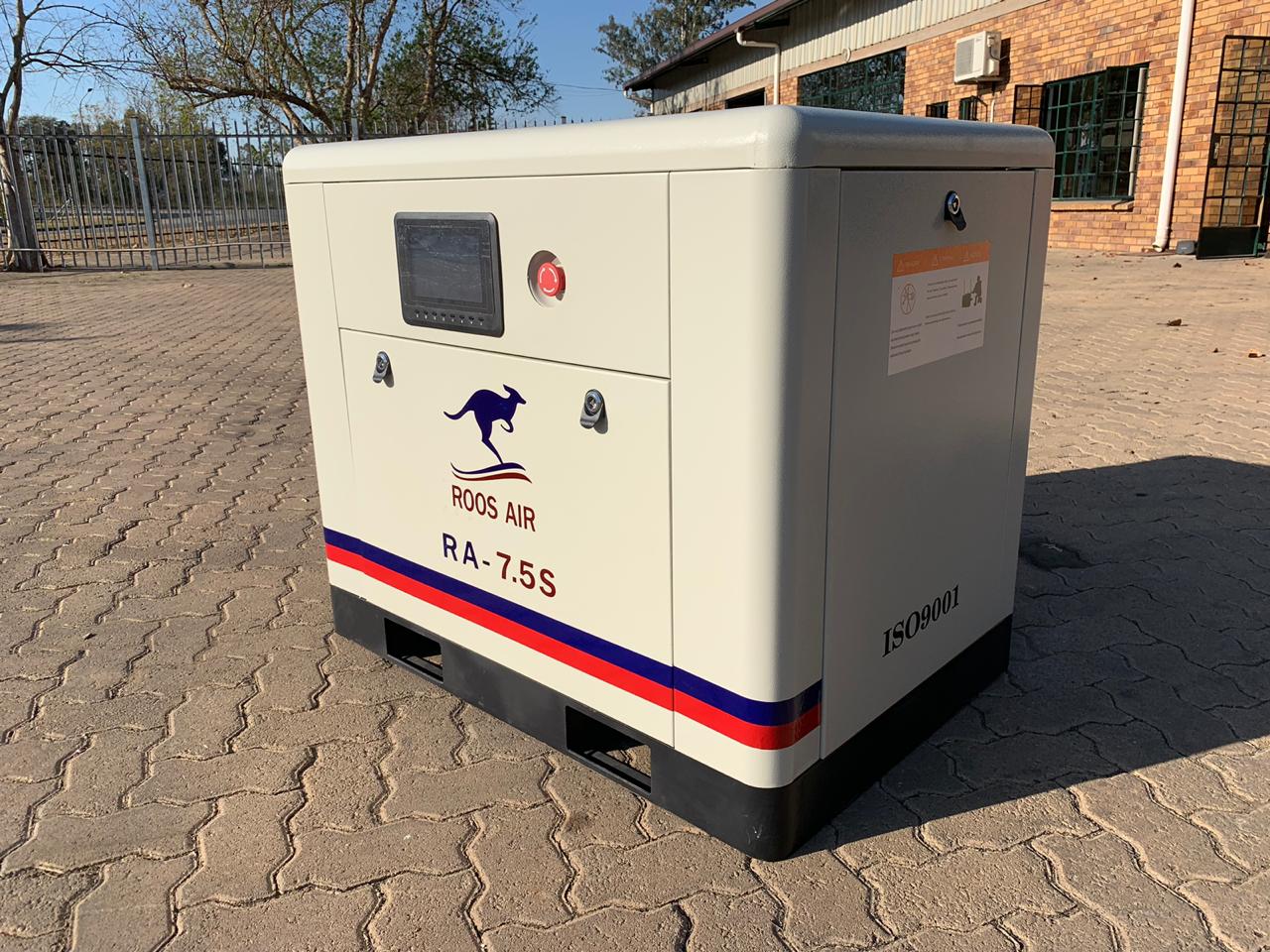

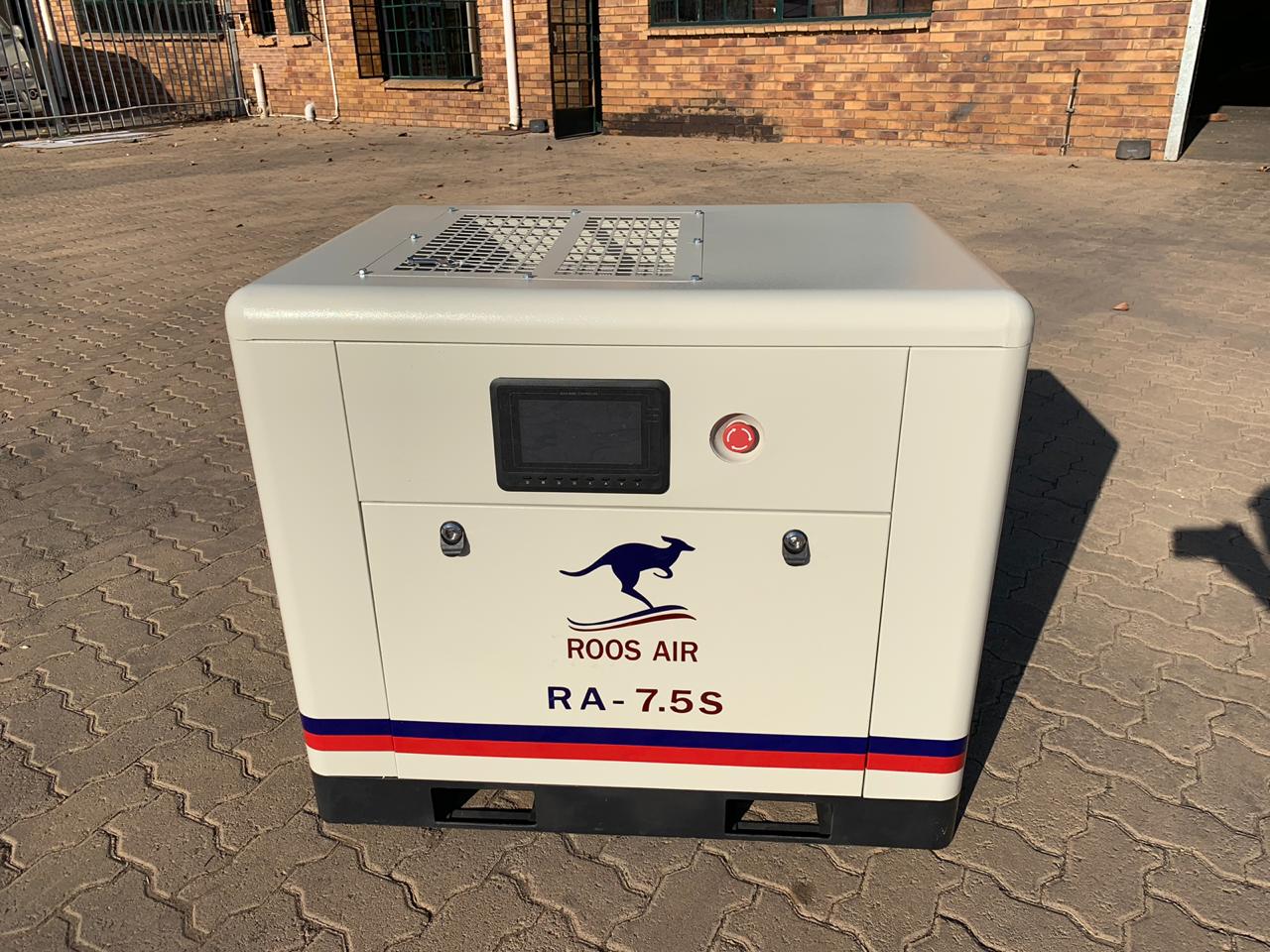

Screw Compressor, RA-7.5S, ROOS AIR, 7.5kW

Screw Compressor, RA-7.5S, ROOS AIR, 7.5kW

Screw Compressor – Direct Drive

Make: ROOS AIR;

Model: RA-7.5S;

Category: Compressor

Working pressure: 8 Bar = 0.8 Mpa;

Air capacity: 38 CFM = 1.1 m³ / min;

Electric motor: 7.5 kW = 10 Hp, 2900 rpm, 380 Volt / 50 Hz;

Motor rank: IP54;

Motor connection: Direct drive;

Air-end: GU, Single Stage

Lubrication: Shell, Corena S2R, Viscosity Grade 46;

FUCHS Compressor ISO VG68 oil.

Oil volume: 5.5 Lt;

Oil change: 4.5 Lt;

Cooling method: Air Cooling;

Ambient temperature: +15 °C;

Air outlet pipe diameter: ½” / 12.7 mm;

Certification: ISO9001;

Warranty: Compressor 1 year / Air-end 3 year;

Overall dimension: 900 x 700 x 830 mm;

Weight: 200 kg;

E.&O.E;

Price, new, ex Pietermaritzburg – KZN warehouse: R40.000 + vat
