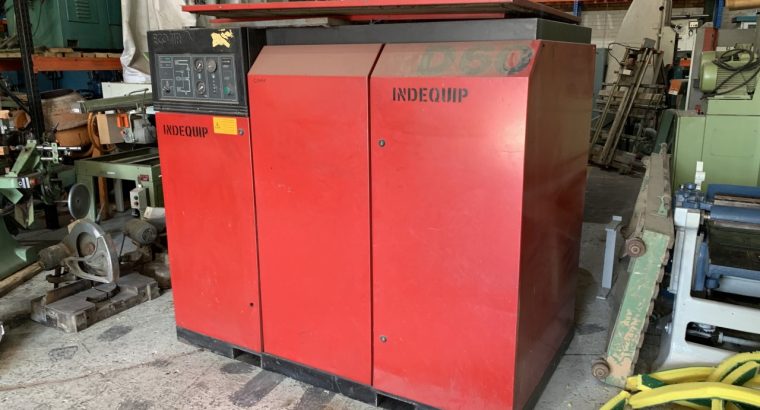

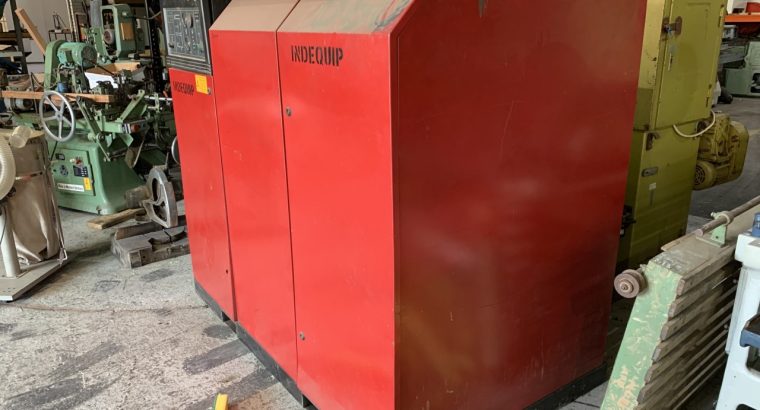

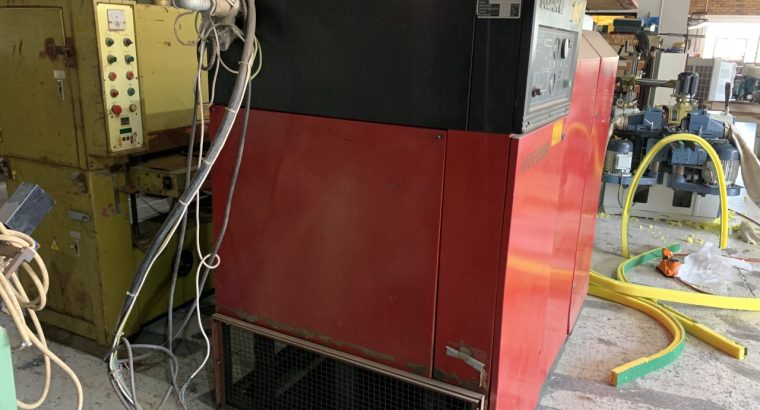

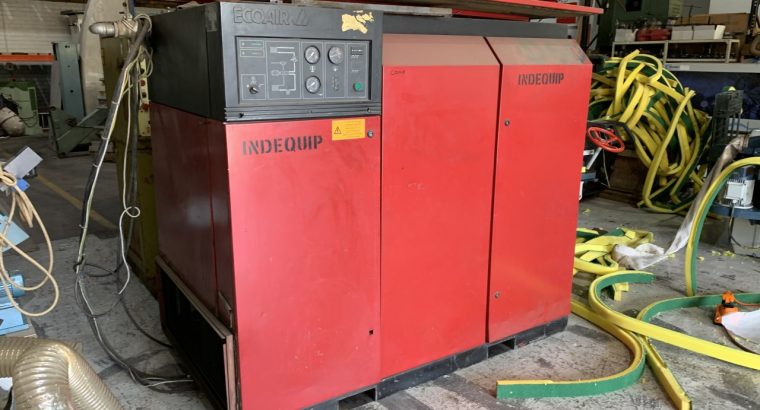

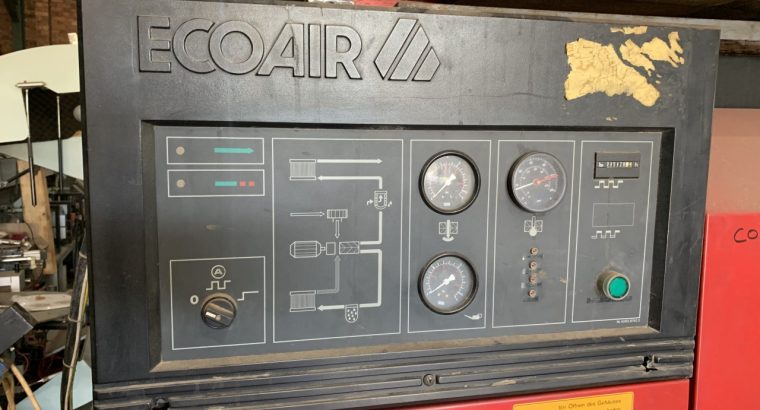

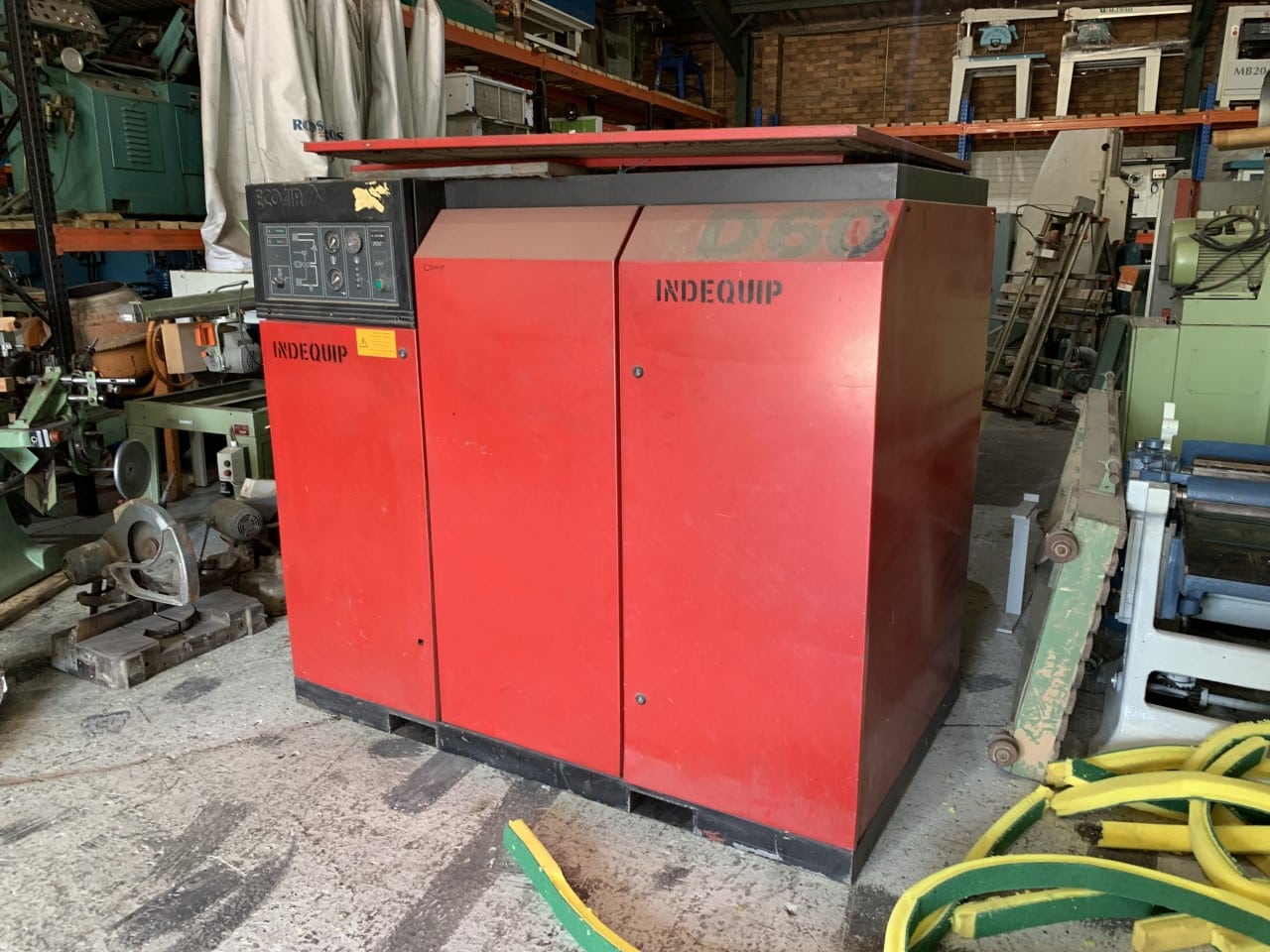

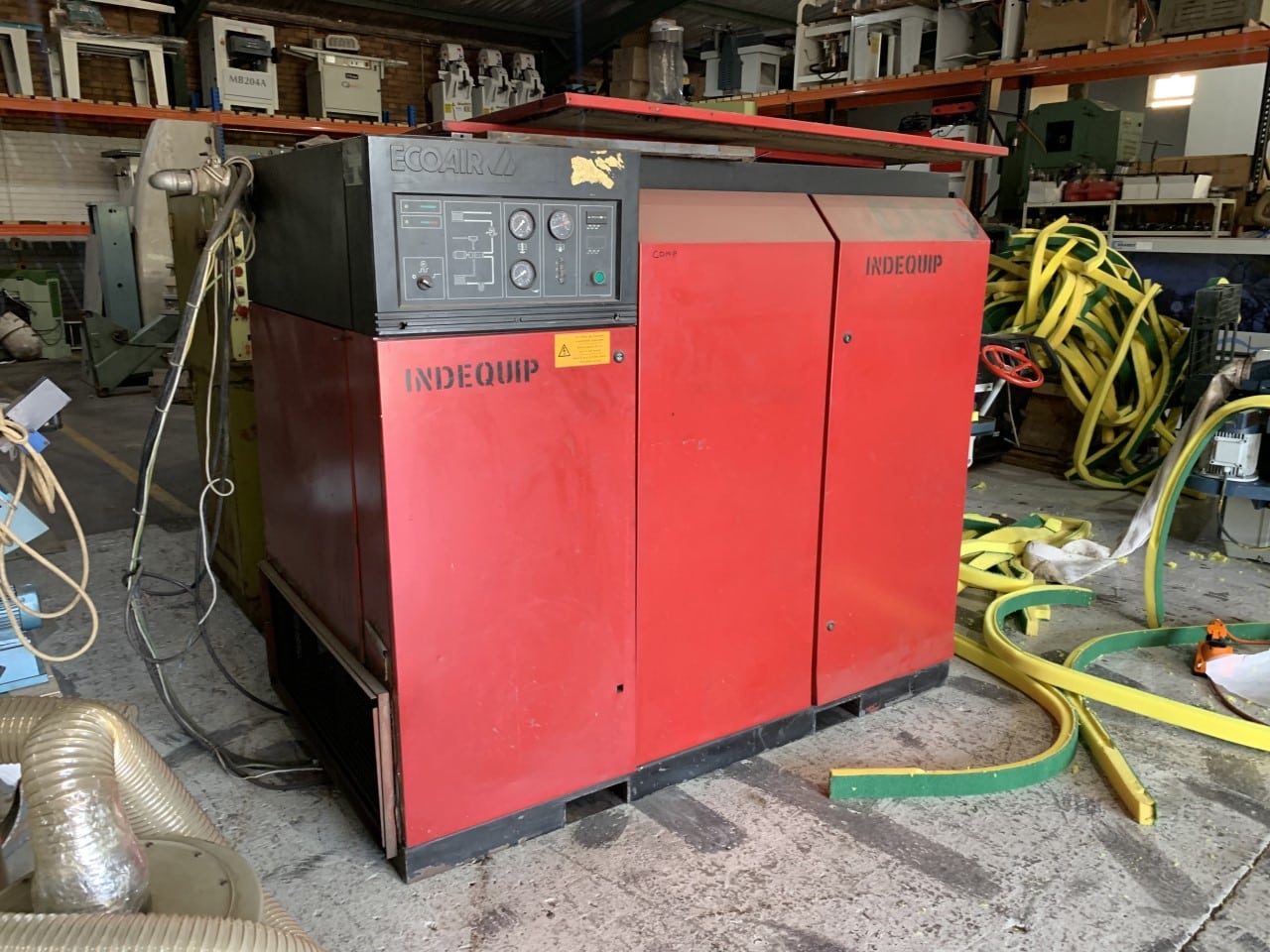

Screw Compressor, ECO AIR, D60, 45kW, 8Bar, 7.16m³/min
Make: ECO AIR
Made in Germany
Model: D60
Serial nr: 27030042
Year: 1990
Electric Motor: SCHORCH, 45kW, 2935 rpm, 380 Volt, 88 Amp.
Starting Current: 221 Amp.
Starting: Time = 3.5 Second, Star-Delta
Capacity / Displacement: 252.75 cfm = 7.16 m³/min
Maximal Working Pressure: 8 Bar
Normal Operating Pressure: 7.8 Bar
Separator Vessel Capacity: 110 Litre
Coolant Capacity: 73 Litre
Sound Level: 71 dB(A)
Running Hours: 45426 Hour
Maintenance Manual: See PDF File
Water Cooled
Cooling Water Flow: 2.6 / 1.3 m³/min
Cooling Water Pressure: 2 Bar
Cooling Water Pressure, min/max: 3 / 10 Bar
Cooling Fan Motor: 1.5 kW, 3.8 Amp
Cooling Air Flow: 8100 m³/min
Overall dimensions: 1.950 x 1.150 x 1.700 mm H
Weight: 990 kg
E.&O.E
Price: used, Clean & Checked, Ex Pietermaritzburg: R50.000 + vat
