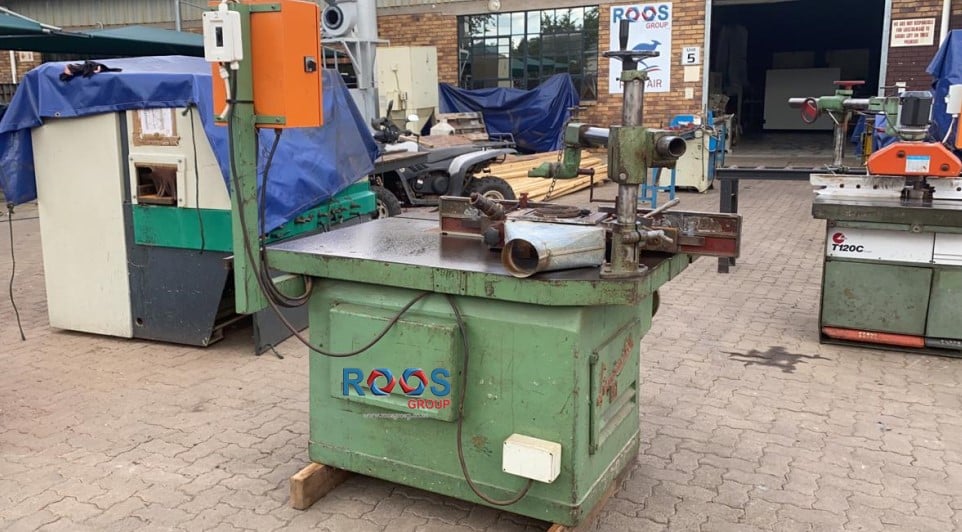

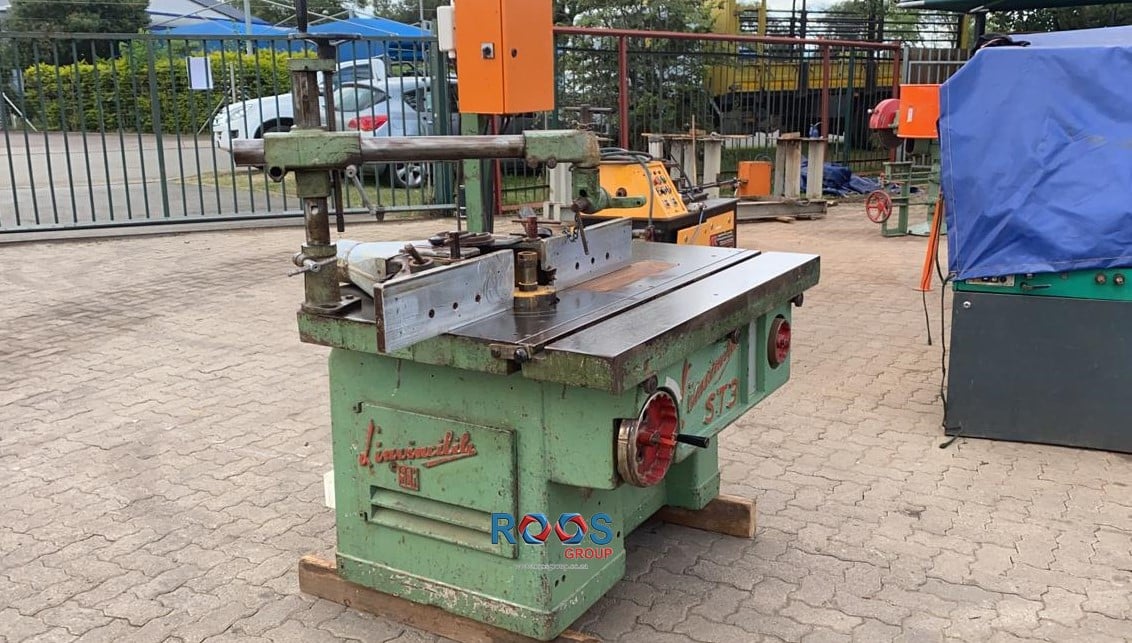

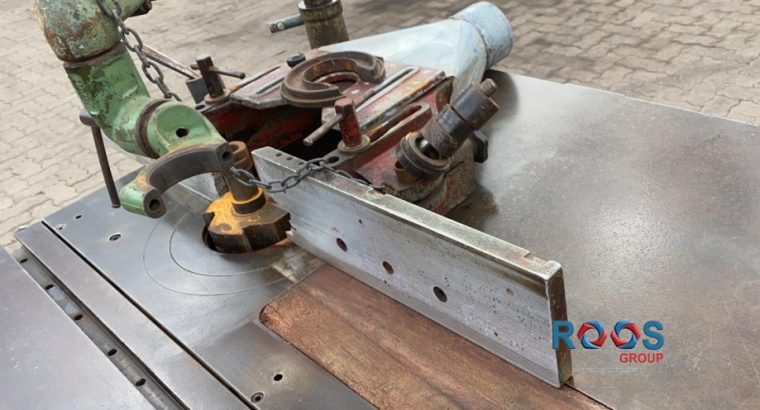

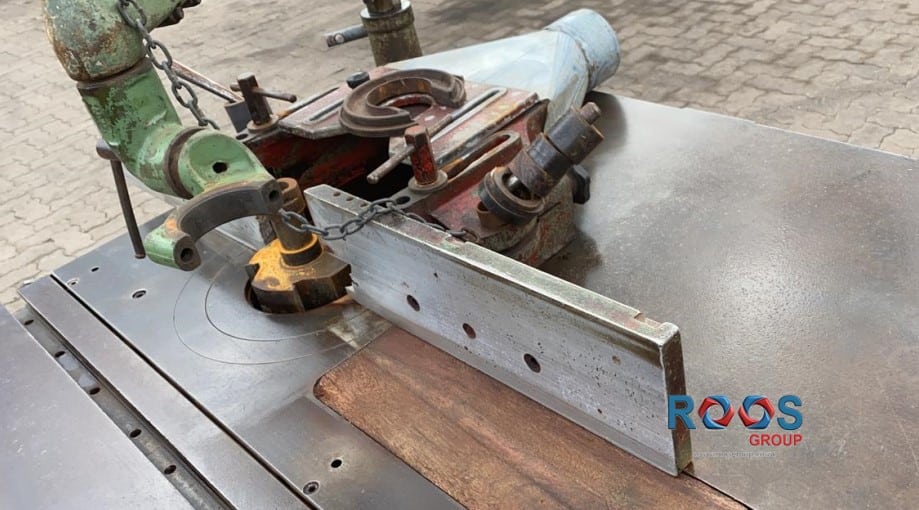

Rip Saw, Spindle, Combination, SCM, ST3
Heavy Duty Combination Machine
Make: SCM;
Made in Italy;
Series: L’invincibile;
Model: ST3;
Saw
Saw Motor: 5.5 kW, 380 Volt
Saw Blade Size: Ø-350 mm
Saw Shaft Size: Ø-30 mm
Maximum Cutting Height: 110 mm
Running Speed: 3-Speed, 3200 – 4500 – 6000 rpm
Sawing Table, Total Size: 1.360 x 1.040 mm
Sliding Table Size: 1.360 x 240 mm
Working Table Size: 1.360 x 800 mm
Saw Blade to Fence: Maximum 610 mm
Working Height: 840 mm
Spindle
Spindle Motor: 5.5 kW, 380 Volt
Shaft Size: Ø-35 x 165 mm
Shaft Vertical Adjustment: 185 mm
Running Speed: 4-Speed, 2900 – 4400 – 6000 – 7200 rpm
Dimensions: 1.550 x 1.300 x 1.700 mm H
Weight: 820 kg
E.&O.E.
Price: used, reconditioned: R49.000 + vat
