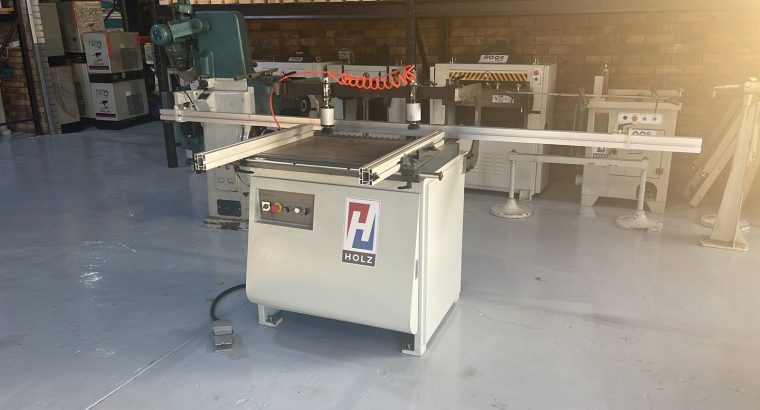

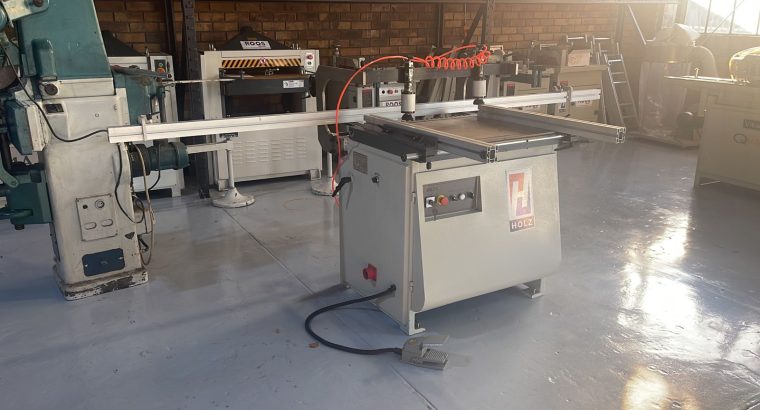

Multi Borer, BM21S, HOLZ , 21-spindle, Automatic
Name: HOLZ;
Model: MB21S;
Machine nr: 17-083-G;
Category: Boring, dowel inserting, gluing
Fast-set, Line Boring Machine;

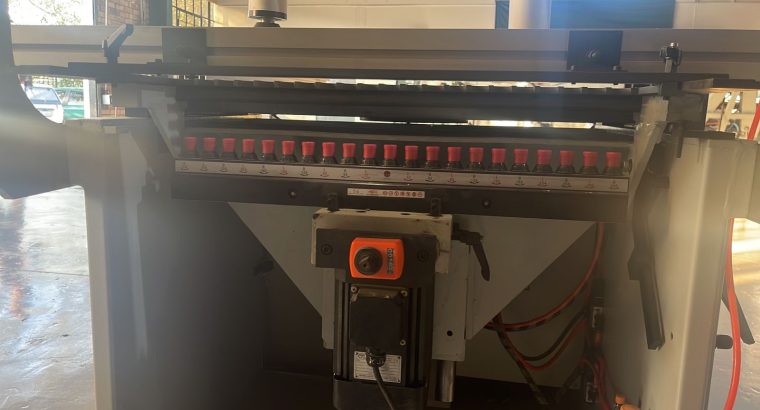

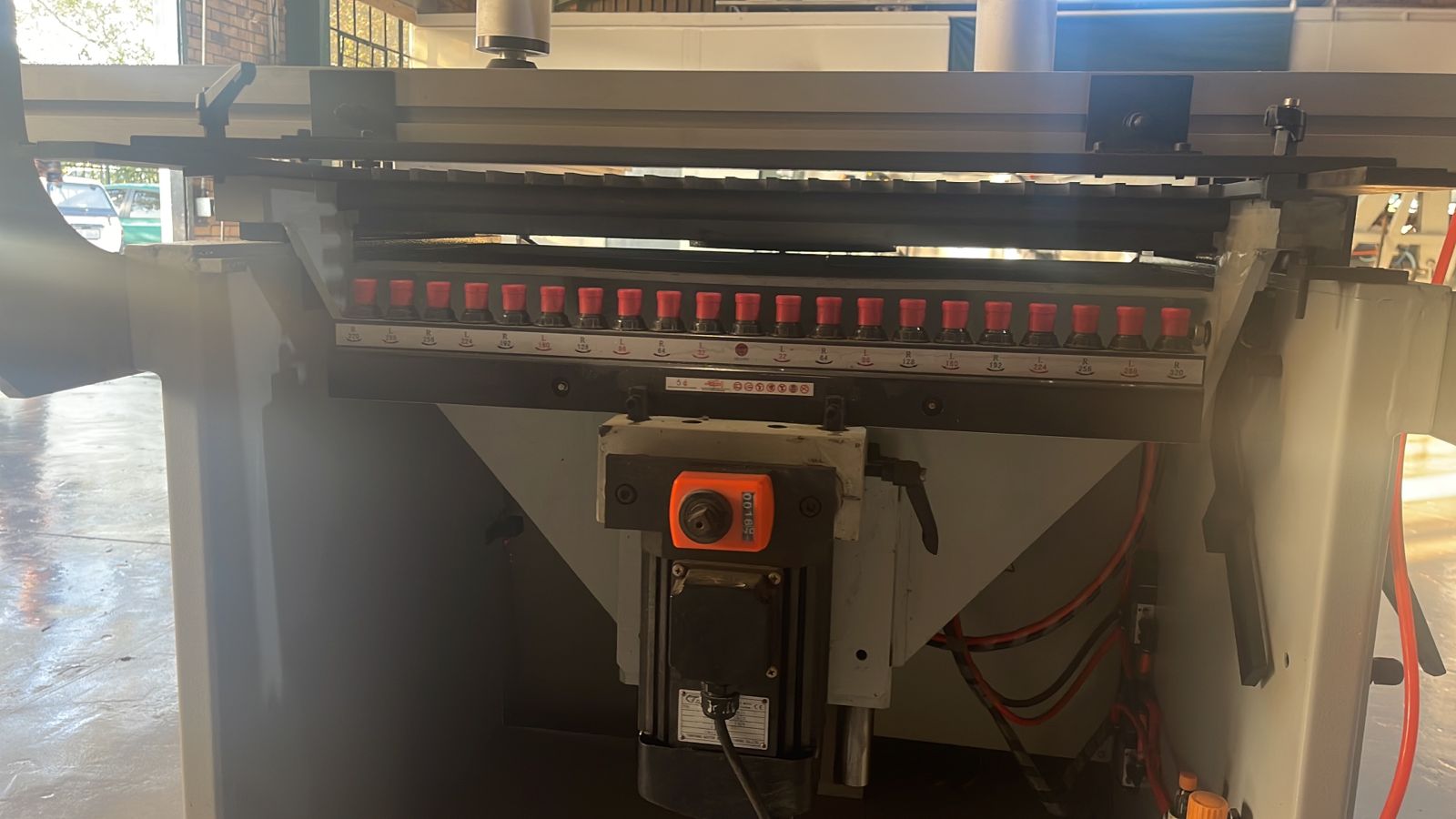

Boring beam: single row 21-spindle;
Working width: 750 mm;
Number of spindle: 21, 11-right, 10-left;
Maximum boring depth: 50 mm;
Collet size: 10 mm, quick-change collets;
Distance between spindles: 32mm c.t.c.;
Total: 32 mm x 21-spindle = 672 mm;
Table size: 890 x 625 mm;
Boring spindle speed: 2800 rpm, right and left run;
Motor: TEFC, 1.5 kW, 380 Volt, 2840 rpm;

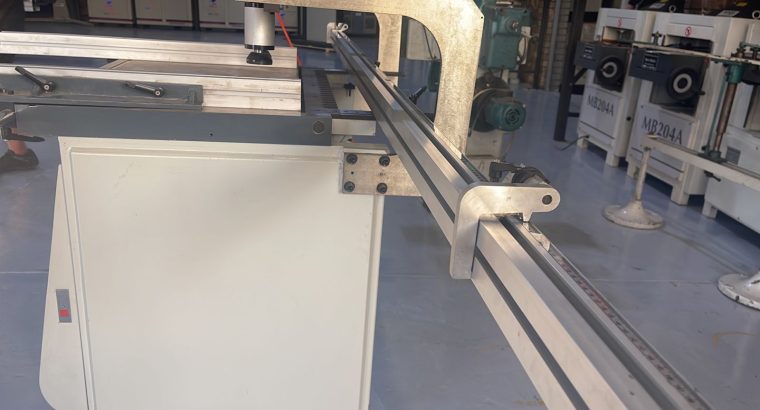

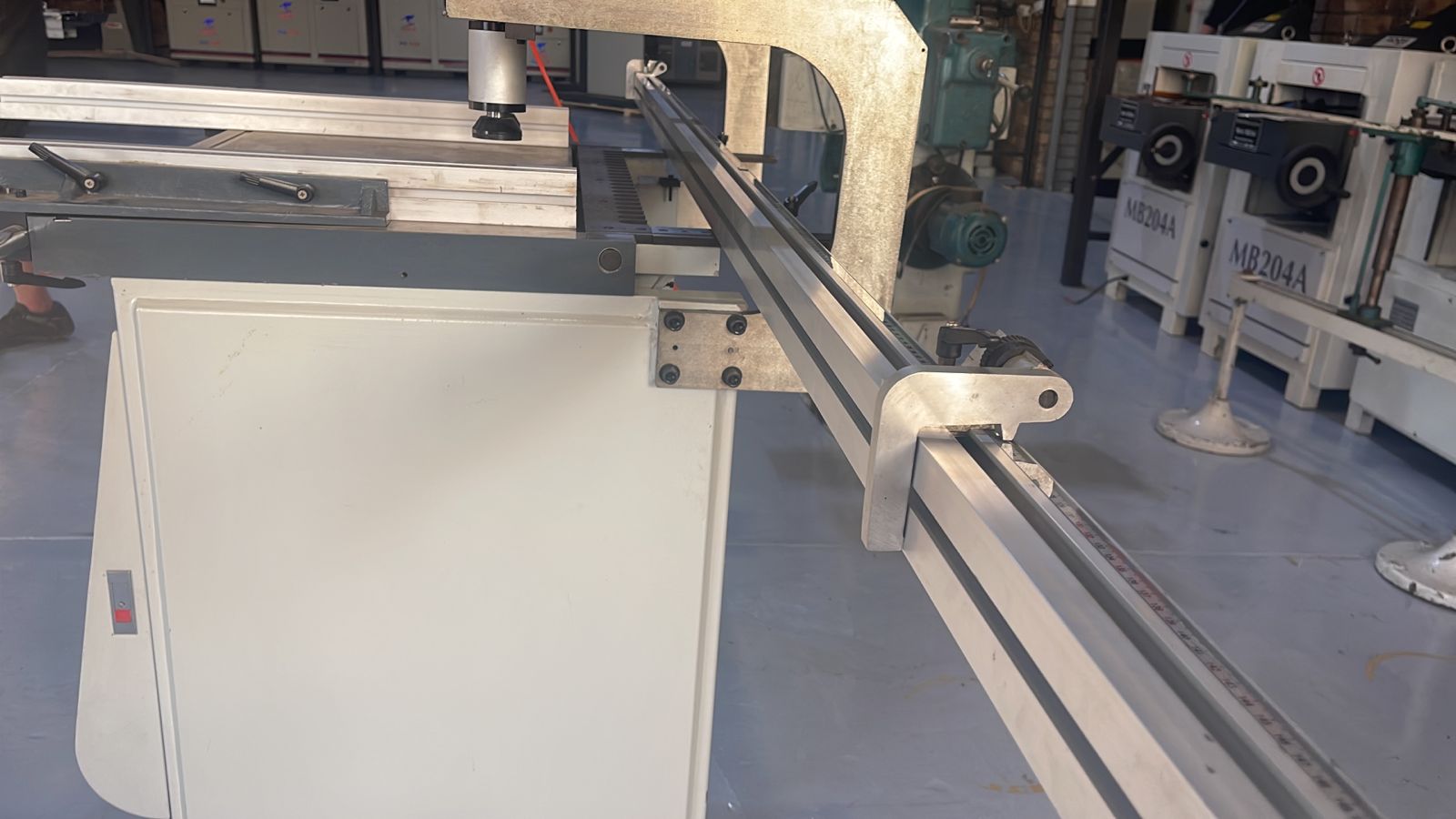

Length of fence: 900 mm, right and left;
Depth control: 6-position turret depth stop;
Clamping: 2x pneumatic clamping cylinder;

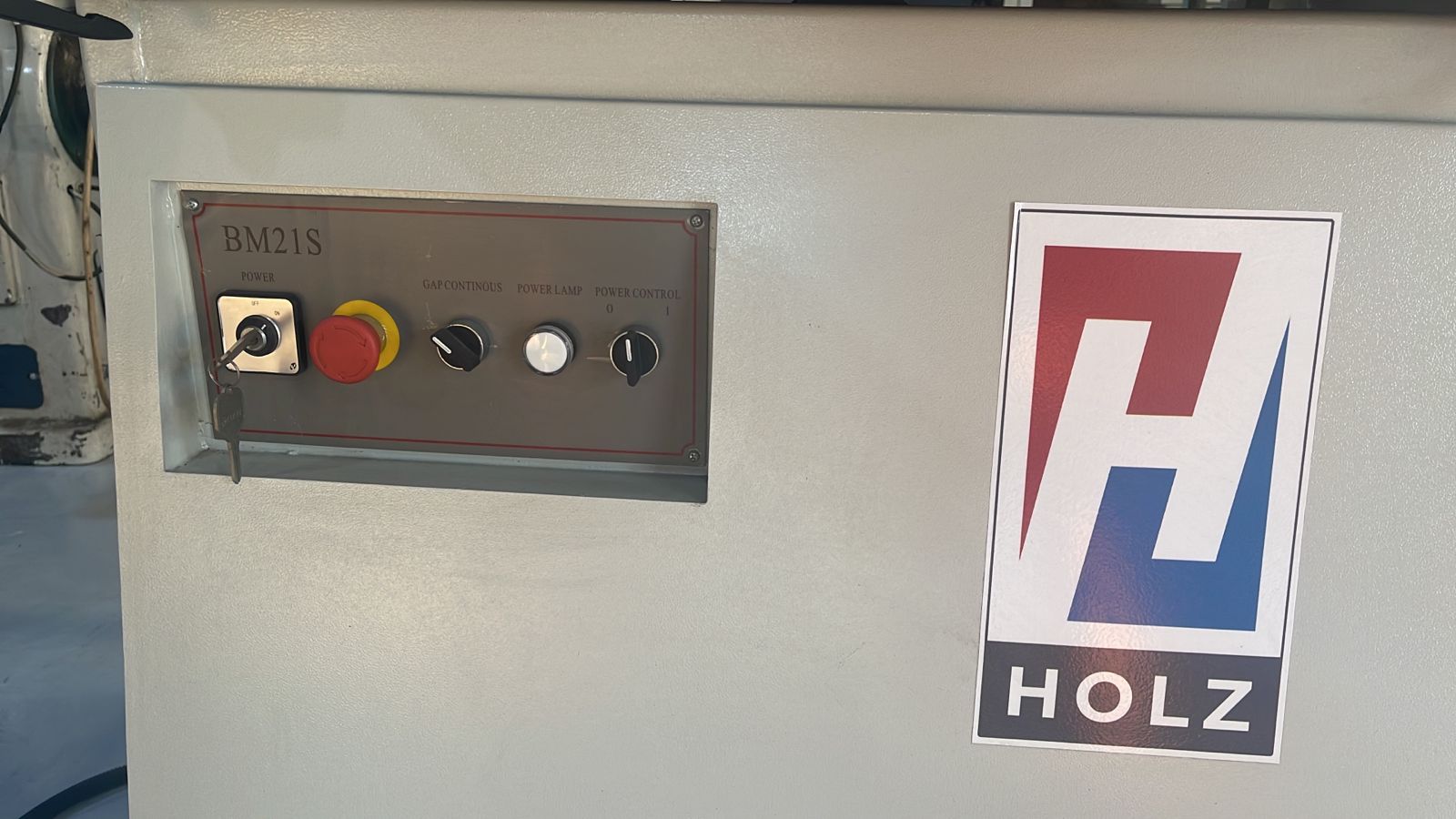

Controlled: by foot pedal – motor starts only by pressing pedal;
Boring position: vertical + horizontal, 0-90°, pneumatic cylinder;
Pneumatic service unit;
Working pressure: 6-8 bar;
Condition: New;
Weight: ± 350kg;
Overall dimensions: ca. 1000 x 1.100 x 1.300 mm;
E.&O.E
Price: ex Pietermaritzburg (KZN) warehouse: R62.000 + vat
We stock drill bits: 6mm, 8mm, 10mm, Prices on request
