Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.

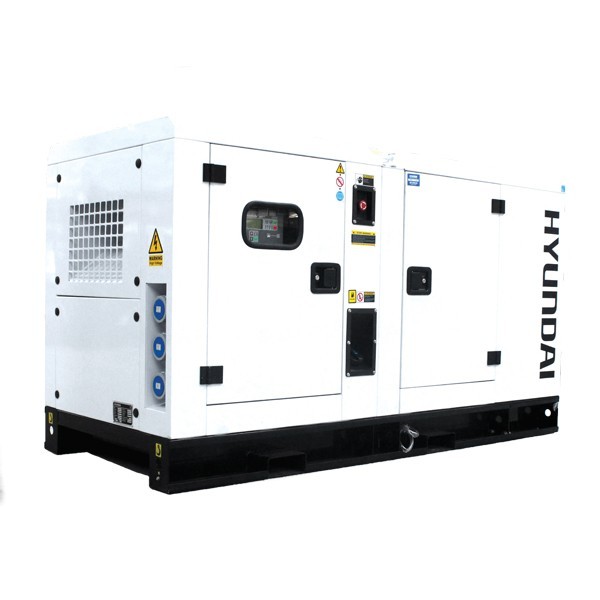

Hyundai DHY45KSE Tech Specs:
Dimensions (mm): Length 2200 x Width 950 x Height 1310
Rated Power (kW/kVA): 32 / 40
Max Power (kW/kVA): 33 / 45
Frequency: 50
Voltage(s): 230, 400
Controller: MRS10 / Deepsea
ATS Port: INCLUDED
Battery (Ah): 1x12V-60Ah
Fuel Capacity (L): 93
Cooling Fluid Volume (L): 25
Fuel Consumption (l/h): 7.2 / 12.8
Engine Model: HY4105
Power Output (hp): 35
Rotate Speed: 1500 RPM
Speed Regulation: MECHANICAL
Displacement: 4100
Oil Capacity (L): 9
Alternator: AVR
Power Factor (Cosφ): 0.8
Voltage Regulation: AVR
Low Oil Pressure: Yes
Block On Startup: Yes
Low Battery: Yes
High Temperature On Water: Yes
Low Oil Level: Yes
Low Running On Engine: Yes
Emergency Stop: Yes
N.G. (kg.): 990
Noise @ 1m: 92
Noise @ 7m: 65
Weight: 1050kg
Gross Weight (kg): 1045.00
Engine Type HY4105
No Of Cylinders 4.00
Displacement (CC): 4100.00
Cooling Method Water
Speed (RPM): 1500.00
Voltage Regulation Method: AVR
Rated kVA: 40.00
Max/Cont Current (a): 59/54
Frequenzy (Hz): 50.00
Connection Method(s): 3 x 230V/32A & Busbar
Battery Type (v/Ah): 1 x 12/60
Dimensions L x W x H (mm): 2200 x 950 x 1310.
Genesis Gen is the leading Dealer of Perkins, Yanmar, Cummins and Hydunia powered diesel generators in South Africa. And we also offering easy installations.
