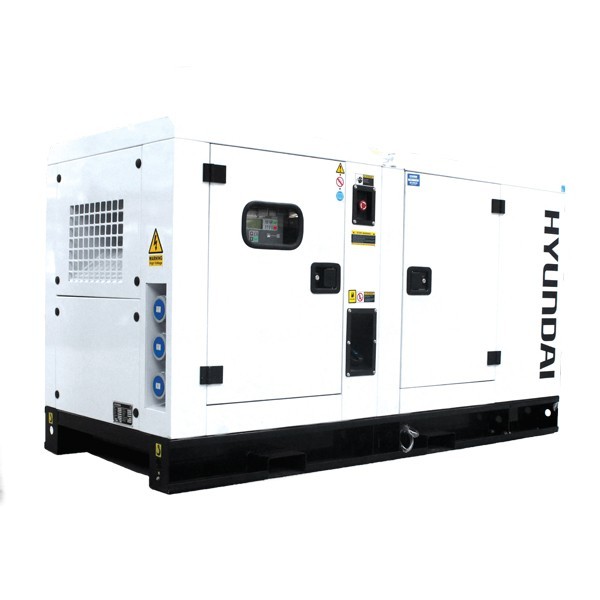

Hyundai DHY28KSE Tech Specs:
Dimensions (mm): Length 2200 x Width 950 x Height 1240
Rated Power (kW/kVA): 20 / 25
Max Power (kW/kVA): 22 / 28
Frequency: 50
Controller: IL-NT MRS10
ATS Port: INCLUDED
Battery (Ah): 1X12V – 60Ah
Fuel Capacity (L): 93
Cooling Fluid Volume (L): 10
Fuel Consumption (l/h): 4.5 / 7.7
Engine Model: HY4100
Power Output (hp): 27
Rotate Speed: 15000 RPM
Speed Regulation: MECHANICAL
Displacement: 3298
Oil Capacity (L): 15
Alternator: No
Power Factor (Cosφ): 0.8
Voltage Regulation: AVR / BRUSHLESS
Low Oil Pressure: Yes
Block On Startup: Yes
Low Battery: Yes
High Temperature On Water: Yes
Low Oil Level: Yes
Low Running On Engine: Yes
Emergency Stop: Yes
Noise @ 1m: 92
Noise @ 7m: 65
Capacity (units/container): 6/20GP;12/40GP;12/HQ
Weight: 870kg
Gross Weight (kg): 870.00
Engine Type: HY4100
No Of Cylinders 4.00
Displacement (CC): 3298.00
Cooling Method Water
Speed (RPM): 1500.00
Voltage Regulation Method: AVR
Rated kVA: 25.00
Max/Cont Current (a): 39/36
Frequenzy (Hz): 50.00
Connection Method(s): 3 x 230V/32A & Busbar
Battery Type (v/Ah): 1 x 12/60
Dimensions L x W x H (mm): 2200 x 950 x 1240
