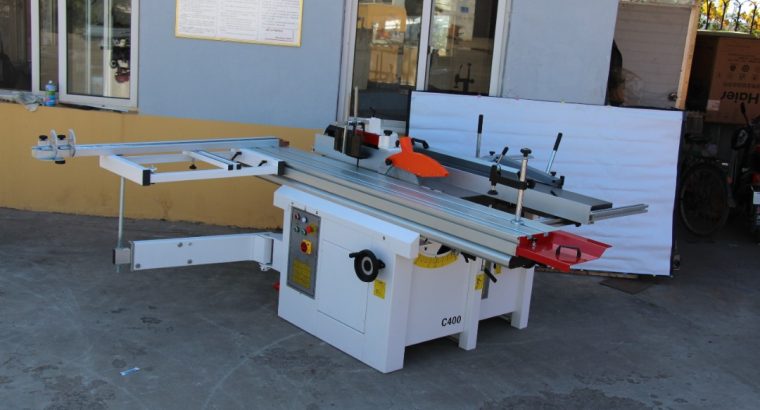

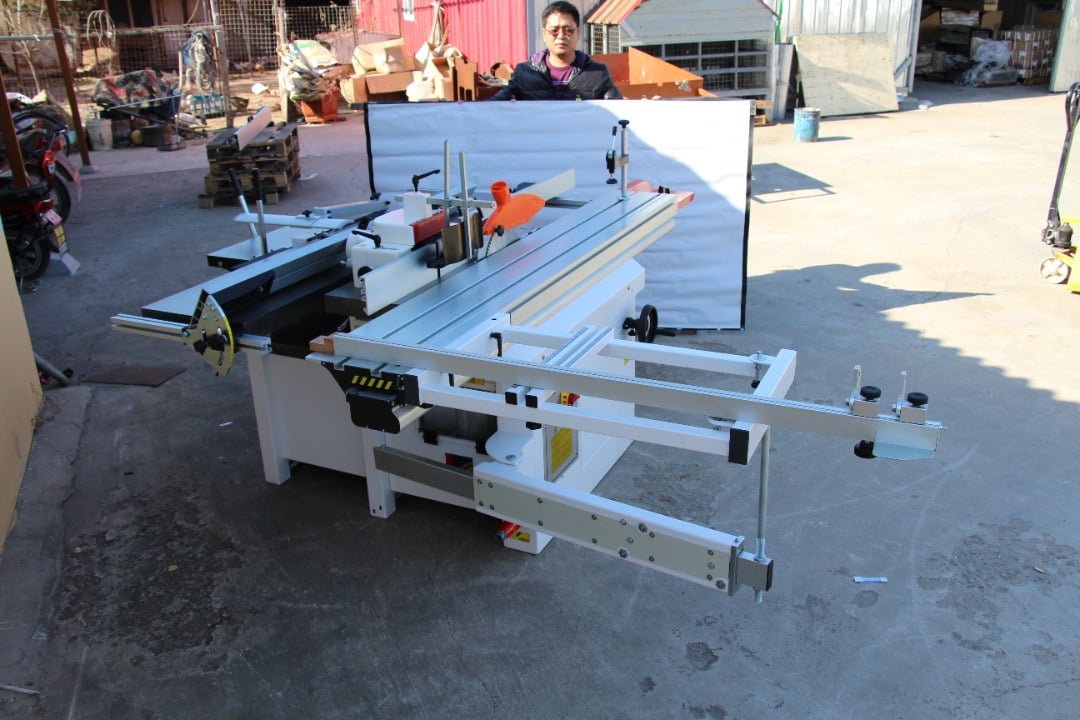

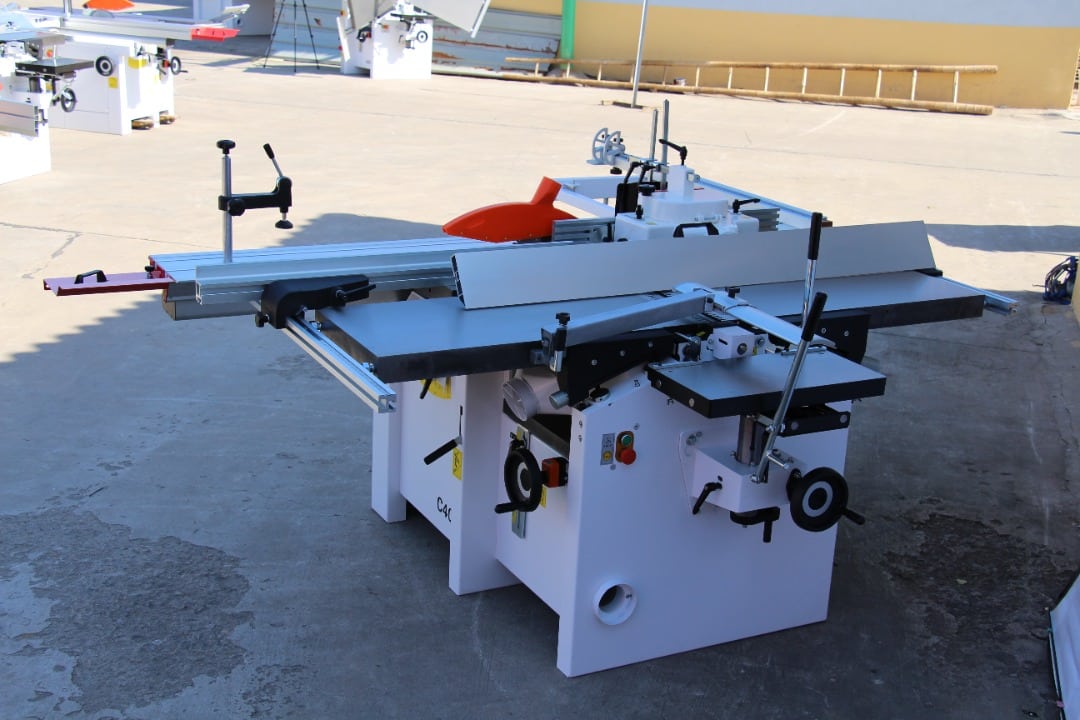

Five Combination, C400
Planer / Thicknesser / Circular Saw / Mortiser / Shaper
Make:
Model: C400
Condition: New
According to spec sheet below
Planer
Working tables: 400×1800 mm
Cutter block diameter70 mm
Cutter block rotation speed: 5700 r.p.m
N. of knives: 3 n°
Knives dimensions: 400x20x3 mm
Max table adjustment: 4 mm
Thicknesser
Working table: 400×760 mm
Feed speed: 7 m/1′
Max. working height: 220 mm
Min. working height: 4 mm
Cutter block rotation speed: 5700 r.p.m
Max. cutting depth: 4 mm

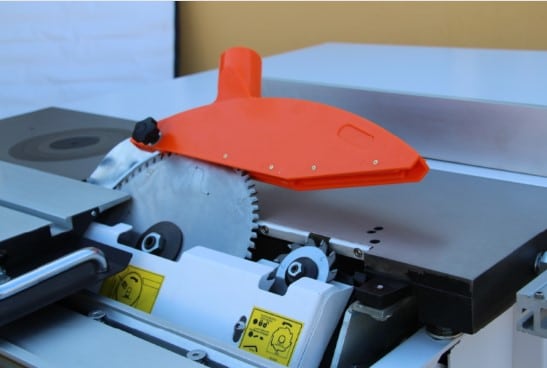

Circular saw
Working table: 326 x 1112 mm
Shaft rotation speed: 4500 r.p.m
Blade diameter: 300 mm
Blade bora diameter: 30 mm
Cutting height 90°: 100 mm
Max. distance between blade and fence: 730mm
Blade inclination: 45°
Max cutting height 45°: 75 mm
Shaft rotation speed engraver: 7000 r.p.m
Engraver blade diameter: 90 mm
Engraver blade bora diameter: 22 mm
Mortiser
Working table:250×500 mm
Longitudinal stroke: 205 mm
Traversal stroke: 95 mm
Vertical stroke: 90 mm
Chuck: 16mm
Chuck rotation speed: 5700 r.p.m
Shaper
Working tables: 326 x 1112 mm
Shaft rotation speeds: 7000/4400/3100/2000
Standard shaft diameter: 30 mm
Spindle length: 105 mm
Shaft vertical stroke: 115 mm
Max. tool diameter: 180 mm
Max. tenoning depth: 65 mm
Tenoning carriage
Carriage dimensions: 1800 x 315 mm
Carriage stroke: 1800/2200 mm
Standard Accesories
Table extensions with swinging arms: 860×600 mm
3-phase motor power: 4,0 – 3,0 HP – KW
N°2 clamp lever
Sharper fence
Service wrenches
Mortiser chuck
Guards on mortiseur chuck
3 pcs. planing knives
Planer guide
Saw guide
Bridge safety hood on planer
Optional Accessories
Single-phase motor: 3,0 – 2,2 HP – KW
Increasing 3-phase motor: 5,5 – 4,0 HP – KW
Extraction: 0,5 – 0,36 HP – KW
Carriage stroke: 2200/2000
Carriage stroke: 2600/2600
Wescott(Diameter): 16 mm
Pianetto proluga output: 326×500 mm
Set of wheels with feeding steering bar
Box dimensions: 1906 x 1296 x 1065 (h) mm
Machine dimensions: 2400 x 1800 x 875 (h) mm
Weight: 645kg
E.&O.E
Price: R 180 000 + vat
