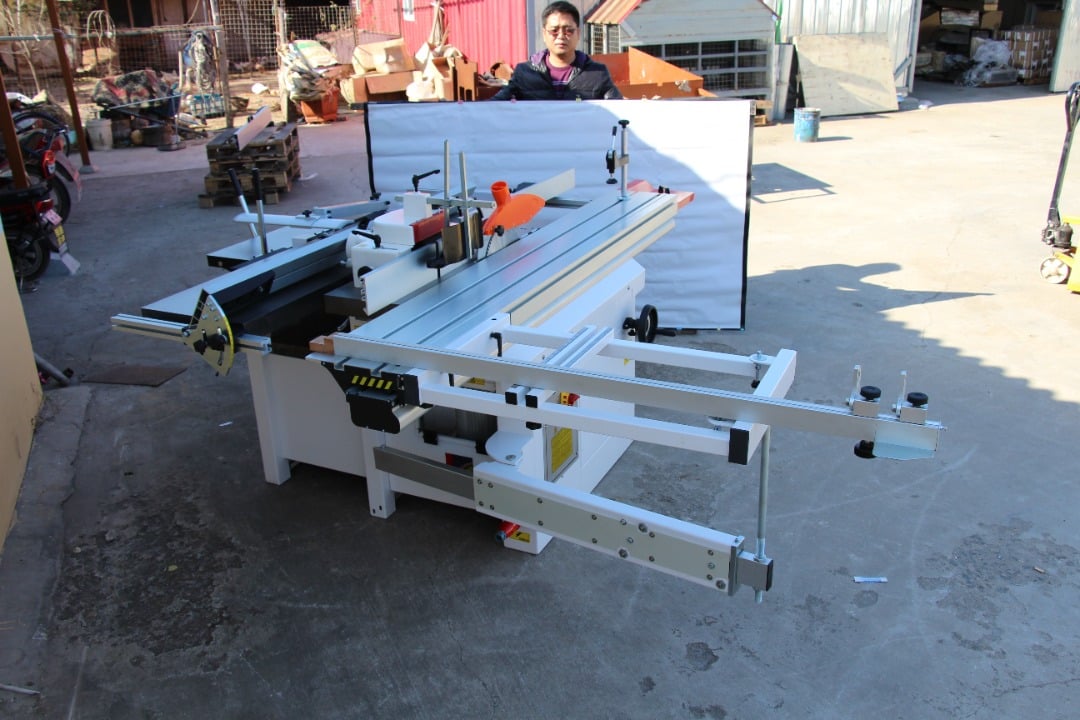

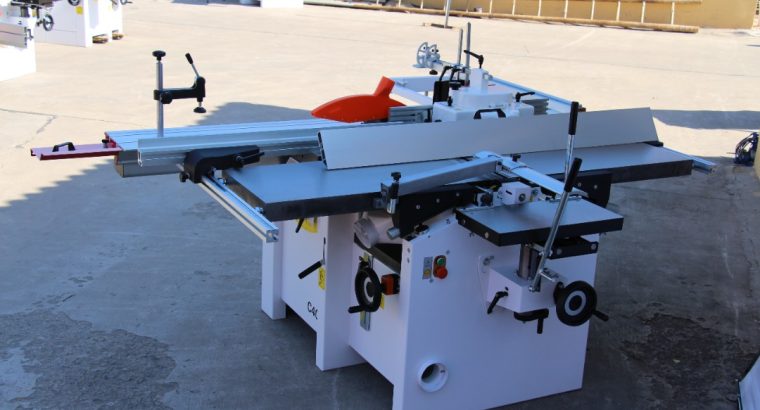

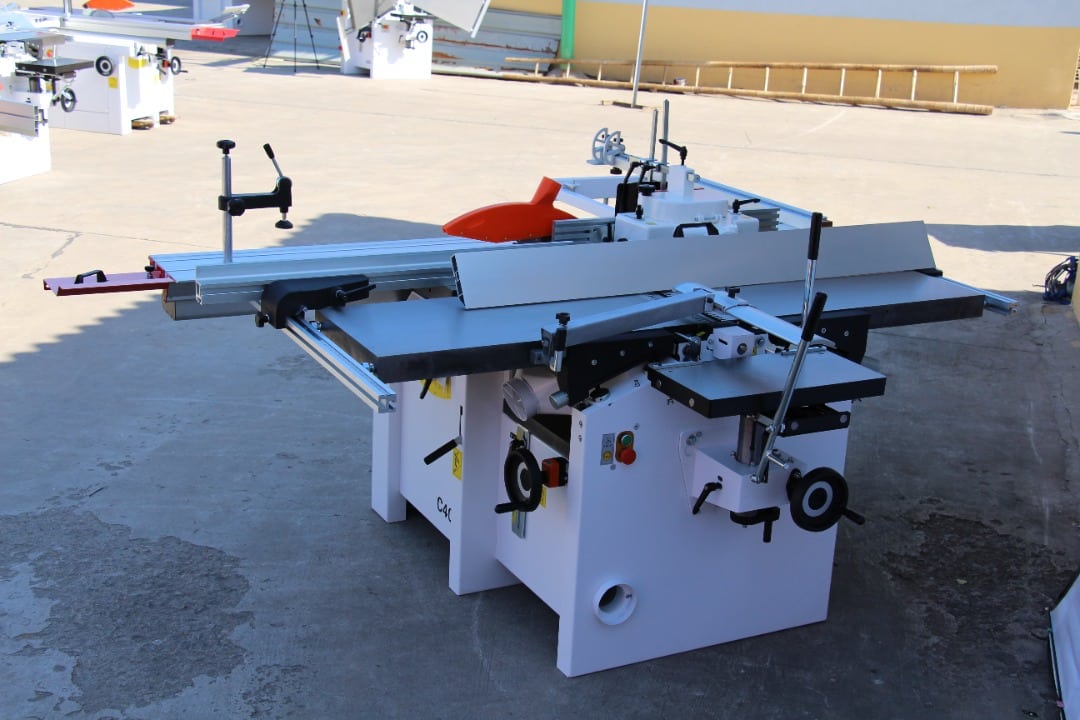

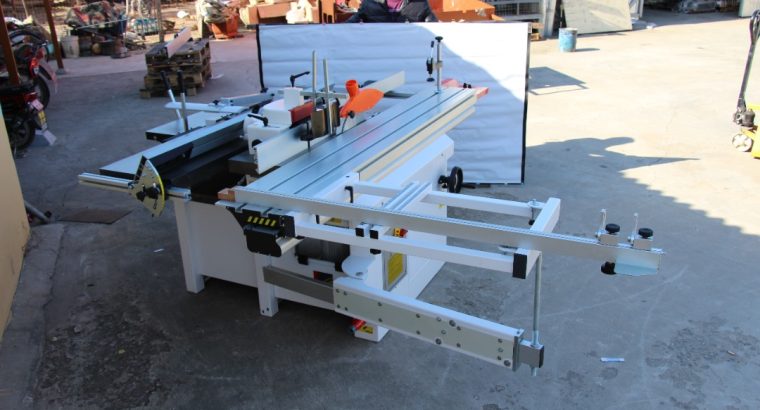

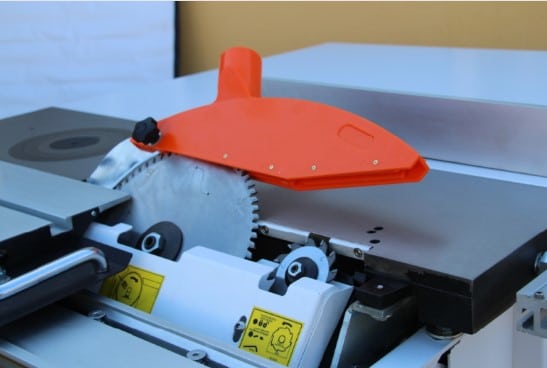

Five Combination, C300
Planer / Thicknesser / Mortiser / Circular Saw / Shaper
Make: HOLZ
Model: C300
Condition: New
According to spec sheet below
Planer
Working tables: 300×1500 mm
Cutter block diameter: 70 mm
Cutter block rotation speed: 5700 r.p.m
N. of knives: 3 n°
knives dimensions: 300x20x3 mm
Max table adjustment: 4 mm
Thicknesser
Working table: 300×660 mm
Feed speed: 7 m/1′
Max. working height: 220 mm
Min. working height: 4 mm
Cutter block rotation speed: 5700 r.p.m.
Max. cutting depth: 4 mm
Mortiser
Working table: 250×500 mm
Longitudinal stroke: 205 mm
Transversal stroke: 95 mm
Vertical stroke: 90 mm
Chuck: 16 mm
Chuck rotation speed: 5700 r.p.m.
Circular Saw
Working table: 220×1000 mm
Shaft rotation speed: 4500 r.p.m.
Blade diameter: 250 mm
Blade bora diameter: 30 mm
Cutting height 90°: 80 mm
Max. distance between blade and fence: 500 mm
Blade inclination: 45°
Max cutting height 45°: 50 mm
Shaft rotation speed engraver: 7000 r.p.m.
Engraver blade diameter: 90 mm
Engraver blade bora diameter: 22 mm
Shaper
Working tables: 220×1000 mm
Shaft rotation speeds: 2000/3100/4400/7000 r.p.m.
Standard shaft diameter: 30 mm
Spindle length: 105 mm
Shaft vertical stroke: 115 mm
Max. tool diameter: 160 mm
Max. tenoning depth: 55 mm
Tenoning carriage
Carriage dimensions: 1250×315 mm
Carriage stroke: 1250/1600 mm
Standard Accessories
Table extensions with swinging arms: 860×600 mm
3-phase motor power: 3,0 – 2,2 HP – KW
Planer guide
Saw guide
Optional accessories
Single-phase motorHP – KW3,0 – 2,2
Increasing 3-phase motorHP – KW4,0 – 3,0
Contouring fence
Wescott (Diameter): 16 mm
Carriage stroke: 1600/1600 mm
Carriage stroke: 1800/1800 mm
Carriage stroke: 2200×2200 mm
Tenoning with protection shelf
Weight: 550 kg
Overall dimensions:
E.&O.E
Price: R135.800 + VAT
