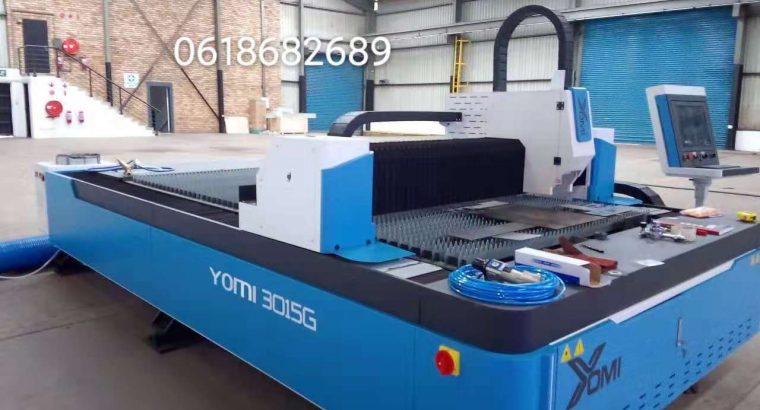

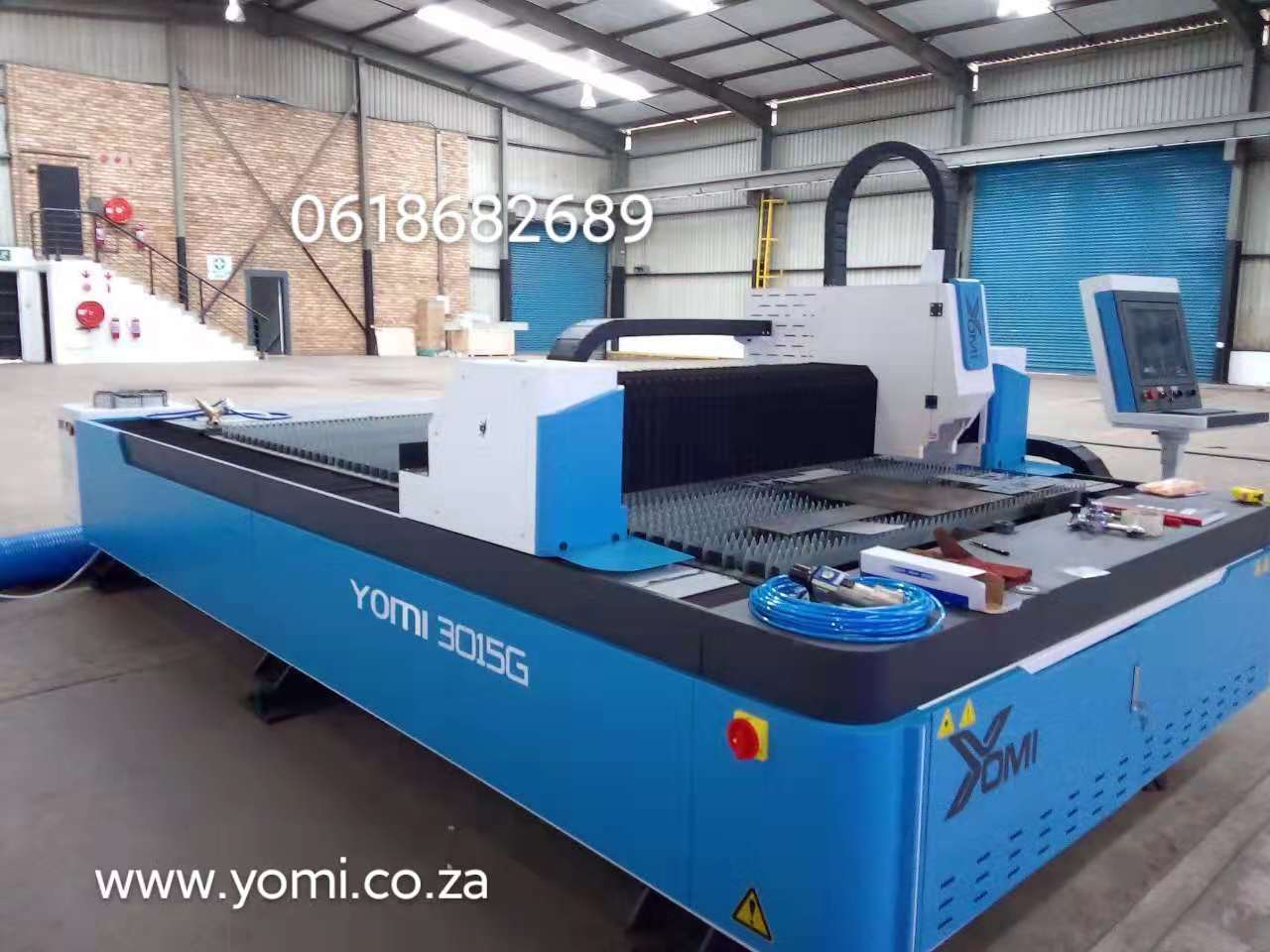

Raycus 1500w fiber laser cutting machine:

ModelYM3015G

Working Area3000*1500mm

Fiber Laser SourceRAYCUS 1500watt

Laser Wave Length1060mm-1080nm

Working TableSawtooth

Position Accuracy±0.03mm/m

Minimum Line Width 0.01mm

Control SystemCypcut

Position TypeRed dot

Working Voltage220V/380V~50Hz/60HZ

Auxiliary GasOxygen, Nitrogen, Air

Working life of fiber moduleMore than 100000 hours

Machine BedWelding Iron(European standards)

Beam(X axis)Cast aluminum beam

Fiber laser cutting headRaytools

Driver systemDelta(Taiwan Brand)/Schneider

Liner guider systemLAPPING

Transmit systemDual Rack & Pinion type

Electrical componentsSIEMENS

Moto ReducerERETAT(Germany)

Nesting SoftwareCypcut

Water chiller unitChina

For more info please contact sale office 0618682689
