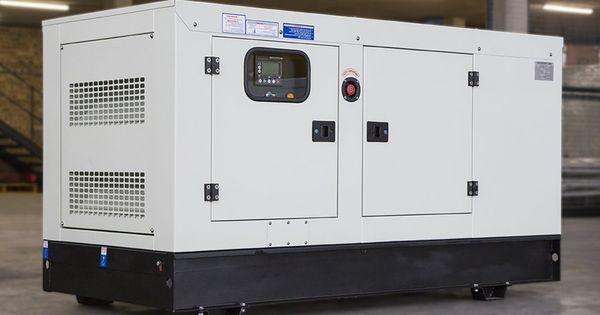

FAW 30KVA SILENT 3-PHASE DIESEL ATS GENERATOR SET
Special high-temperature flame-retardant sound insulation sponge.
Slap-up hinge and door handle.
The Soundproof canopy is made up of 2mm thick powder coated steel.
Soundproof foam is 40mm to 50mm each side.
Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.
Engine specifications
==================
Diesel generator model: 4DW92-39D
Engine make: FEW
Displacement: 2,5451
Cylinder bore/Stroke: 90mm x 100mm
Fuel system: In-line fuel injection pump
Cylinders: 4
Cylinder arrangement: Vertical in-line
Engine output power: 29KW
Cycle: Four stroke
Combustion system: Direct injection
Compression ratio: 17.5.1
Fuel tank capacity: 2201
Fuel consumption 100%: 7.85 1/H
Fuel consumption 75%: 5.89 1/H
Fuel consumption 50%: 3.92 1/H
Fuel consumption 25%: 1.96 1/H
Oil type: 15W40
Oil capacity: 8L
Cooling method: Radiator water-cooled
Coolant capacity: 5.15L
Starter: 24v DC
Governor system: Electrical
Engine speed: 1500rpm
