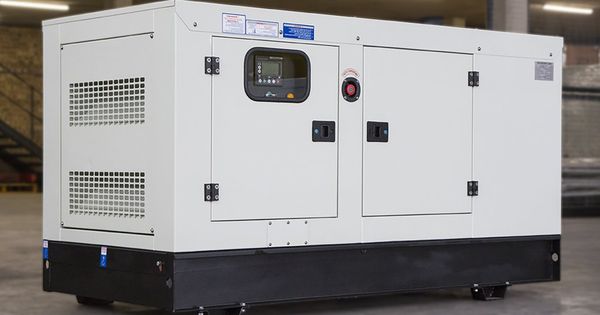

FAW 23KVA SILENT 3-PHASE DIESEL ATS GENERATOR SET
Special high-temperature flame-retardant sound insulation sponge.Slap-up hinge and door handle.The Soundproof canopy is made up of 2mm thick powder coated steel.Soundproof foam is 40mm to 50mm each side.Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.
Engine specifications
==================
Diesel generator model: 4DW81-29DEngine make: FEWDisplacement: 2,571Cylinder bore/Stroke: 90mm x 100mmFuel system: In-line fuel injection pumpCylinders: 4Cylinder arrangement: Vertical in-lineEngine output power: 21KWCycle: Four strokeCombustion system: Direct injectionCompression ratio: 17.1Fuel tank capacity: 1801Fuel consumption 100%: 6.0 1/HFuel consumption 75%: 4.5 1/HFuel consumption 50%: 3.0 1/HFuel consumption 25%: 1.5 1/HOil type: 15W40Oil capacity: 8LCooling method: Radiator water-cooledCoolant capacity: 12.5LStarter: 12v DCGovernor system: ElectricalEngine speed: 1500rpm
Features and Benefits
====================
Maximum 25kVA standby power at 230/400v @50Hz 1500rpmPowerful FAW four-cylinder 1500rpm water cooled 4DW91-29D series diesel engineIdeal for home and small business applicationsSilent canopy which can stand outside with lockable doorsAutomatic changeover (ATS), maintenance free batteries and trickle charger includedLong range diesel tank allows for longer run times (180l)Four-way protection system includedH-specification insulation, brushless alternator with AVR provides stable outputEasy to use digital controller with auto and manual start optionsPeace of mind of earlier of one year/1000 hour warranty vs traditional 3000rpm sets at six months/500 hoursImproved fuel consumption and better reliability/longer lifespan than 3000rpm units We are the supplier and dealer of Perkins, Yanmar, Cummins and Hyundai diesel generators in South Africa. And we also provide simple installations.
