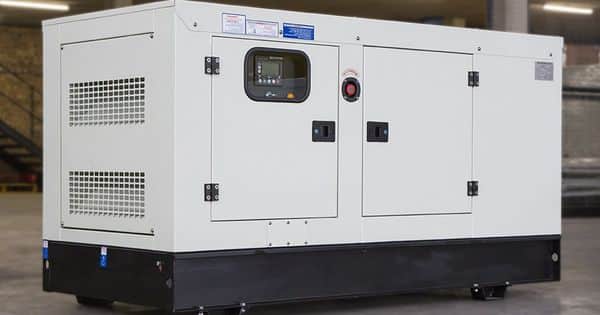

FAW 15KVA SILENT THREE PHASE DIESEL ATS GENERATOR SET.
Special high-temperature flame-retardant sound insulation sponge.
Slap-up hinge and door handle.
The Soundproof canopy is made up of 2mm thick powder coated steel.
Soundproof foam is 40mm to 50mm each side.
Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.
Genset Model: GDP16FS-1P
Connection: 3-Phase
Rated Voltage: 230V
Rated Speed: 1500rpm
Frequency: 50Hz
Rated Current: 69.5A
Prime Power: 12KW/15KVA
Tank Size: 35L Diesel
Standby Power: 14.10KW/17.60KVA
Rating: At Sea Level
Engine Model: FAW 4DW81-23D
Radiator Rating: 50℃
Alternator Model: Copy Stamford WHI164D
Fuel Consumption: 2.7L @ 75% Load
Type of Canopy: Silent Weather Proof.
Maximum 15.5kVA standby power at 230/400v @50Hz 1500rpm
Powerful FAW four-cylinder 1500rpm water cooled 4DW81-23D series diesel engine
Ideal for home and small business applications
Silent canopy which can stand outside with lockable doors
Automatic changeover (ATS), maintenance free batteries and trickle charger Included
Long range diesel tank allows for longer run times (180l)
H-specification Insulation, brushless alternator with AVR provides stable output
Four-way protection system included
Easy to use digital controller with auto and manual start options
Peace of mind of earlier of one year/1000 hour warranty vs traditional 3000rpm sets at six months/500 hours
Improved fuel consumption and better reliability/longer lifespan than 3000rpm units.
