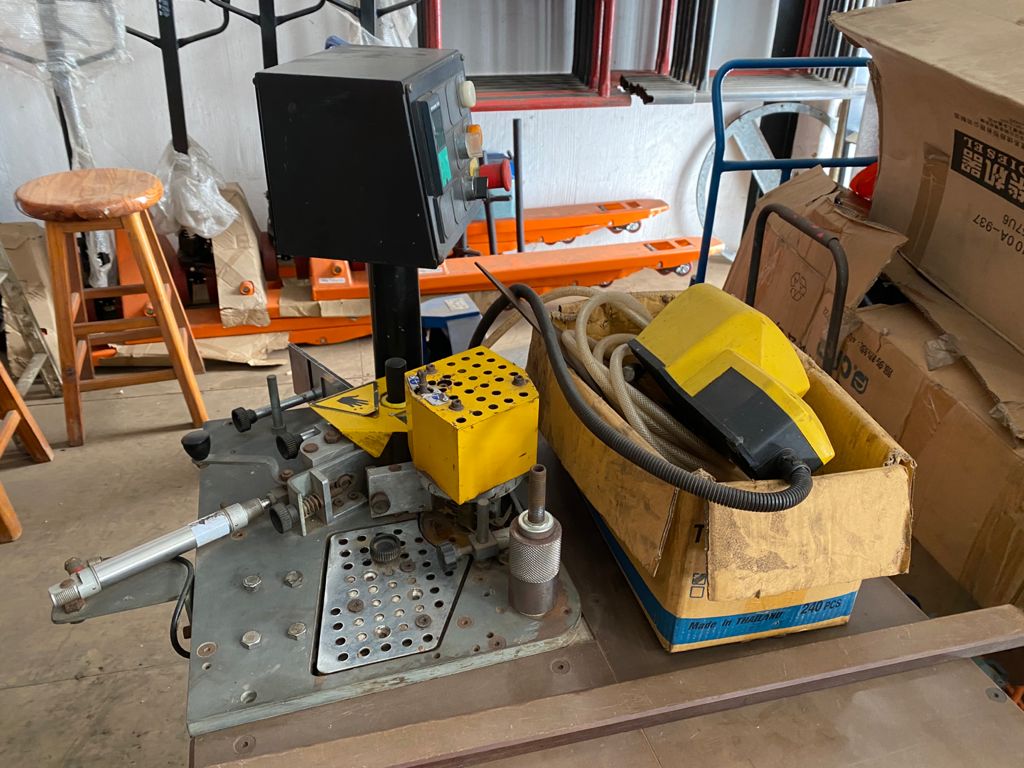

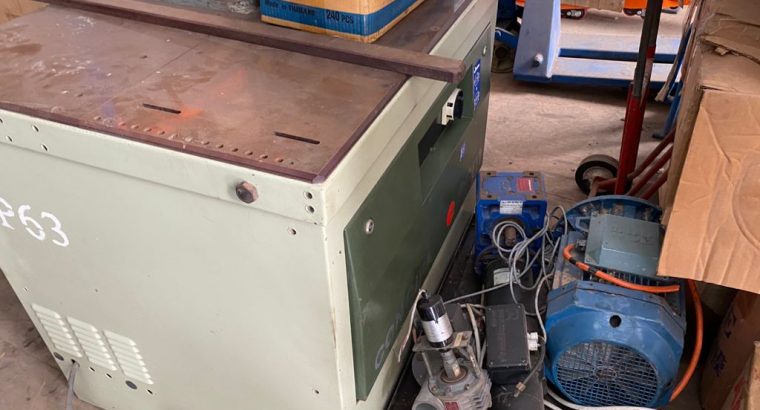

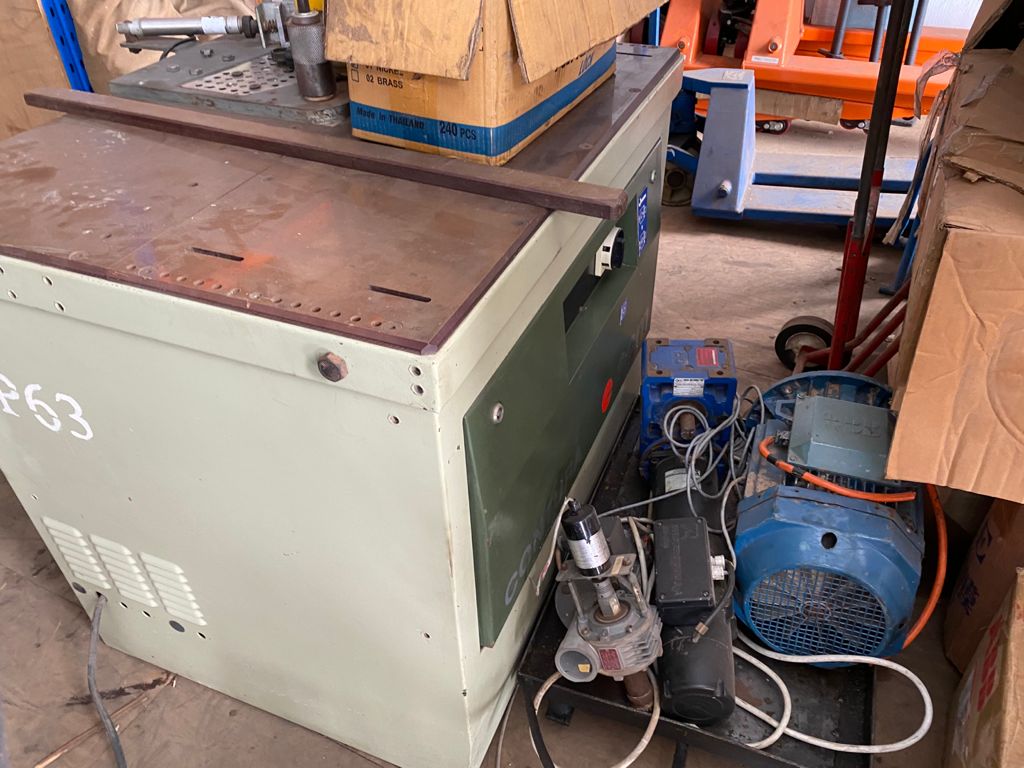

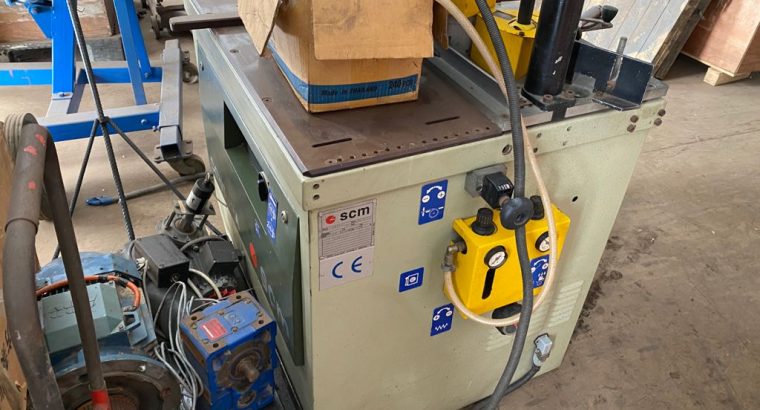

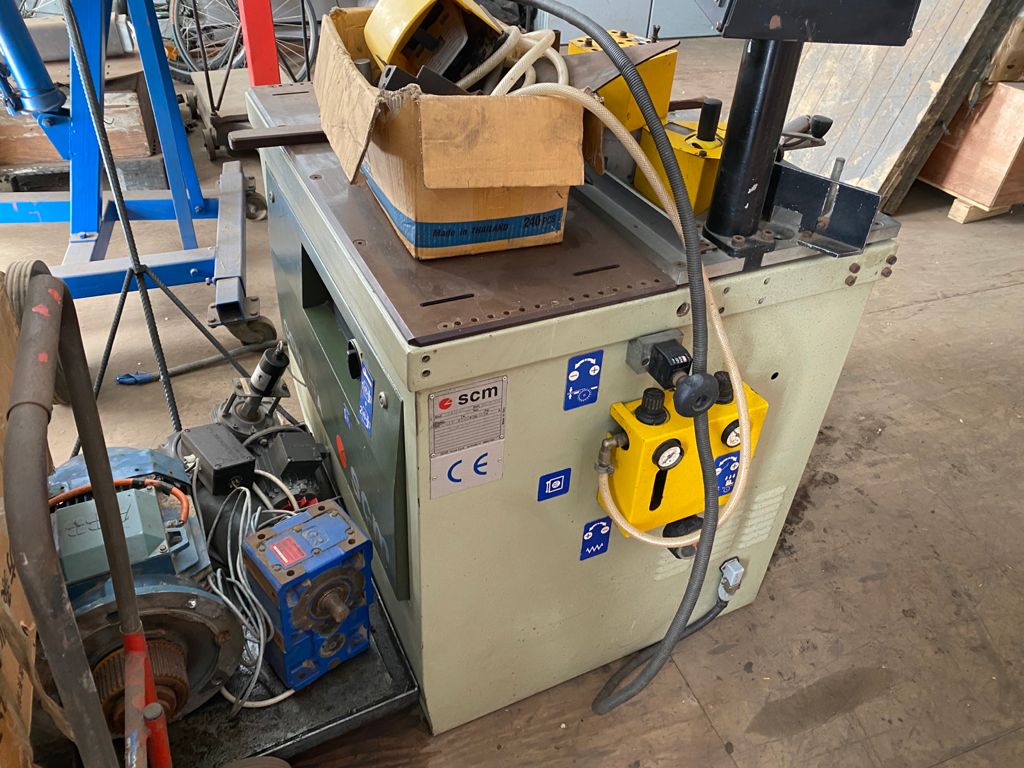

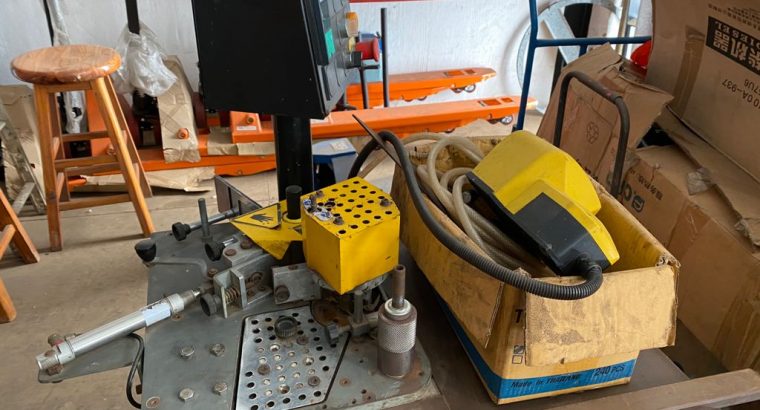

Edgebander, SCM, Contura
Make: SCM
Model: Contura
Edging thickness: 0.5 – 3.0 mm
Edging width: 15-60 mm
Thickness 0.5mm – 1.0mm: 60mm width
Thickness 0.5mm – 2.5mm: 50mm width
Thickness 0.5mm – 3mm: 45mm width
Minimum board thickness: 12 mm
Maximum board thickness: 60 mm
Minimum width of the boards: 50 mm
Minimum length of the boards: 230 mm
Minimum internal radius (concave) thickness 0.5mm – 1.0mm: 30mm
Minimum external radius (concave) thickness 0.5mm – 10mm: 5mm
Feed speed: 2-10 m/min
Total power: 4 KW, 380V
Compressed air: 6 BAR
Roll holder table diameter: 600 mm Ø
Worktable height: 850 mm
Overall Dimensions: 1100 mm X 1000 mm X 1400 mm
Weight: 250 kg
Price: Used, cleaned ex Pietermaritzburg (KZN) warehouse: R22.000 + vat
Roos Group (Pty) Ltd | Woodworking Machinery
Unit 5, Edmond Place Business Park, Camps Drift, 3201, Pietermaritzburg, KZN
Travis Grubb 072 742 1220 , tr****@**********co.za
www.roosgroup.co.za
