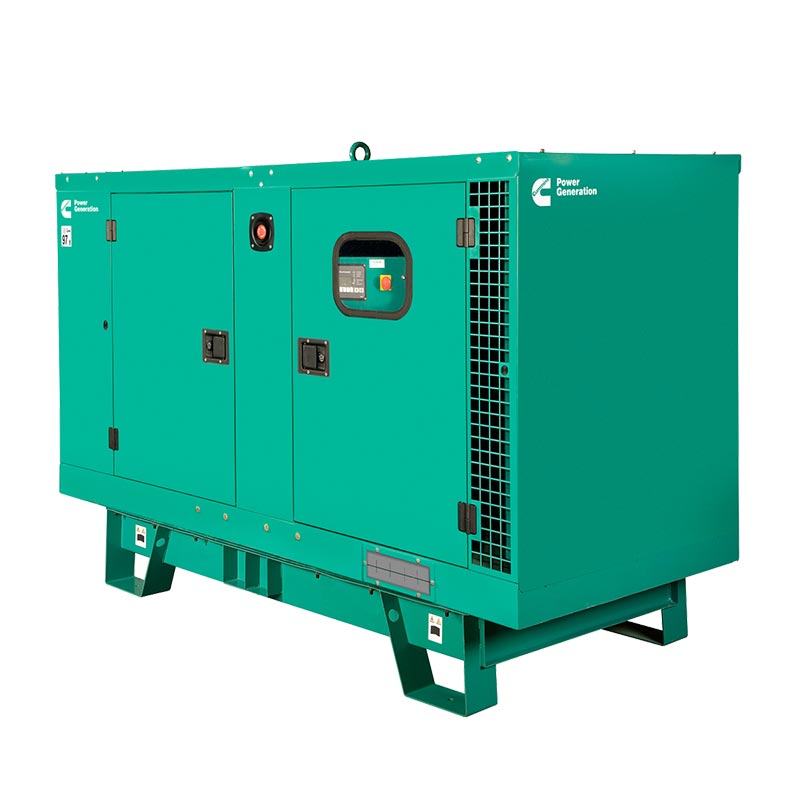

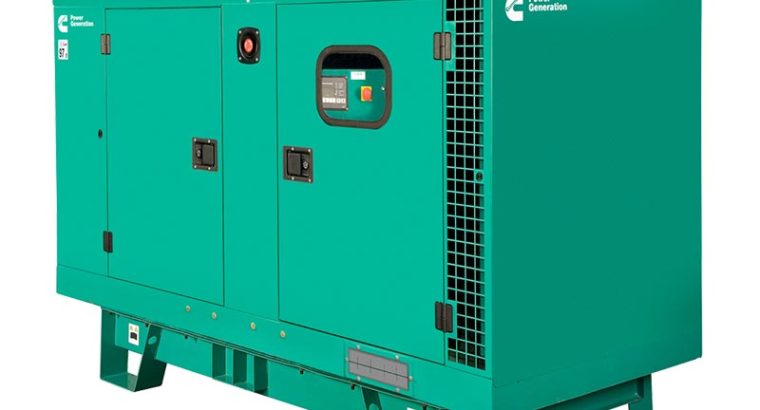

CUMMINS 38KVA SILENT 3-PHASE ATS DIESEL GENERATOR
Special high-temperature flame-retardant sound insulation sponge.
Slap-up hinge and door handle.
The Soundproof canopy is made up of 2mm thick powder coated steel.
Soundproof foam is 40mm to 50mm each side.
Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.
Main Specification.
Genset Model: THSC30PM
Connection: 3 Phase
Rated Voltage: 400V/230V
Rated Speed: 1500rpm
Frequency: 50Hz
Rated Current: 54A per phase
Prime Power(PRP): 30KW/38KVA
Tank Size: 180L Diesel
Standby Power(ESP): 33KW/41KVA
Rating: At Sea Level
Engine Model: Cummins 4BT3.9-G2
Radiator Rating 50℃
Alternator Model: Marathon GM-30-4
Fuel Consumption: 6.5L @ 75% Load
Type of Canopy: Super-silent Weather Proof
Noise Rating: 61dB @ 7 meters
Special high-temperature flame-retardant sound insulation sponge.
Slap-up hinge and door handle.
The Soundproof canopy is made up of 2mm thick powder coated steel.
Soundproof foam is 40mm to 50mm each side.
Noise Level: 75~78dB (1m radius); 72~74dB (7m radius).
The muffler is installed inside the canopy.
Genesis Gen is the leading Dealer of Perkins, Yanmar, Cummins and Hydunia powered diesel generators in South Africa. And we also offering easy installations.
