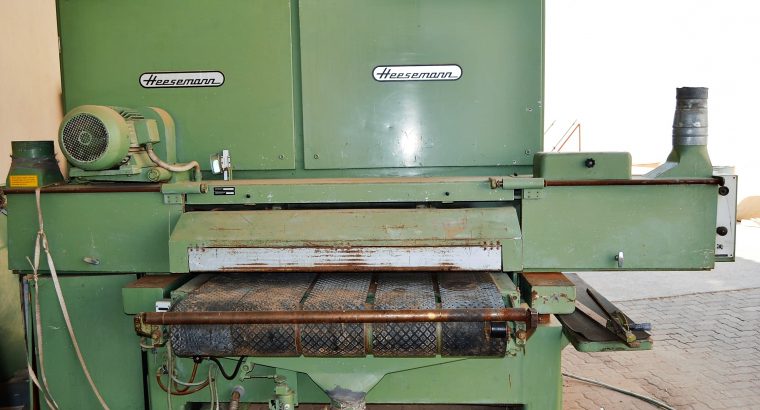

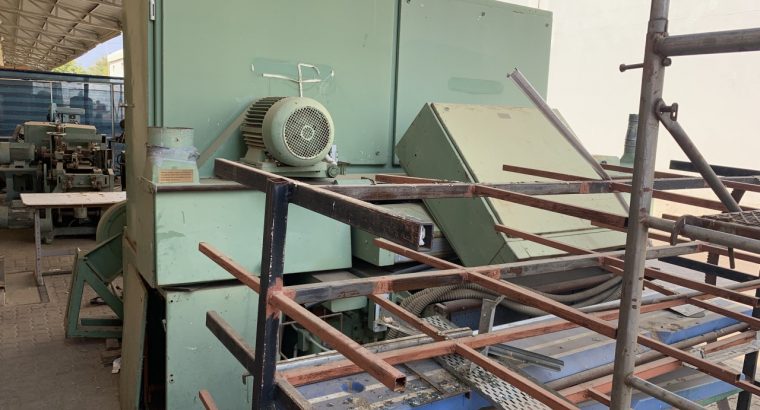

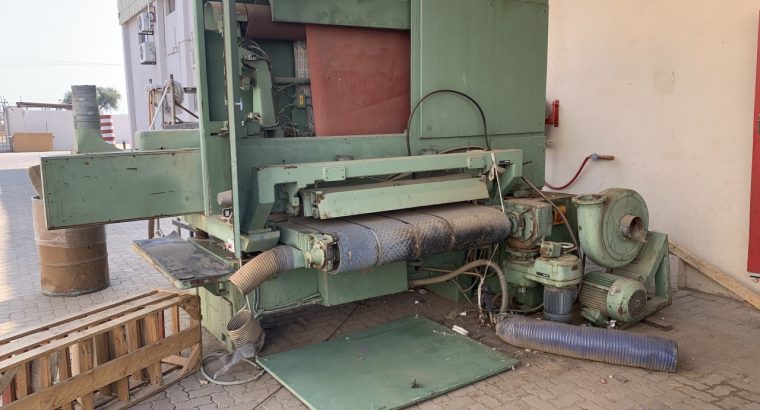

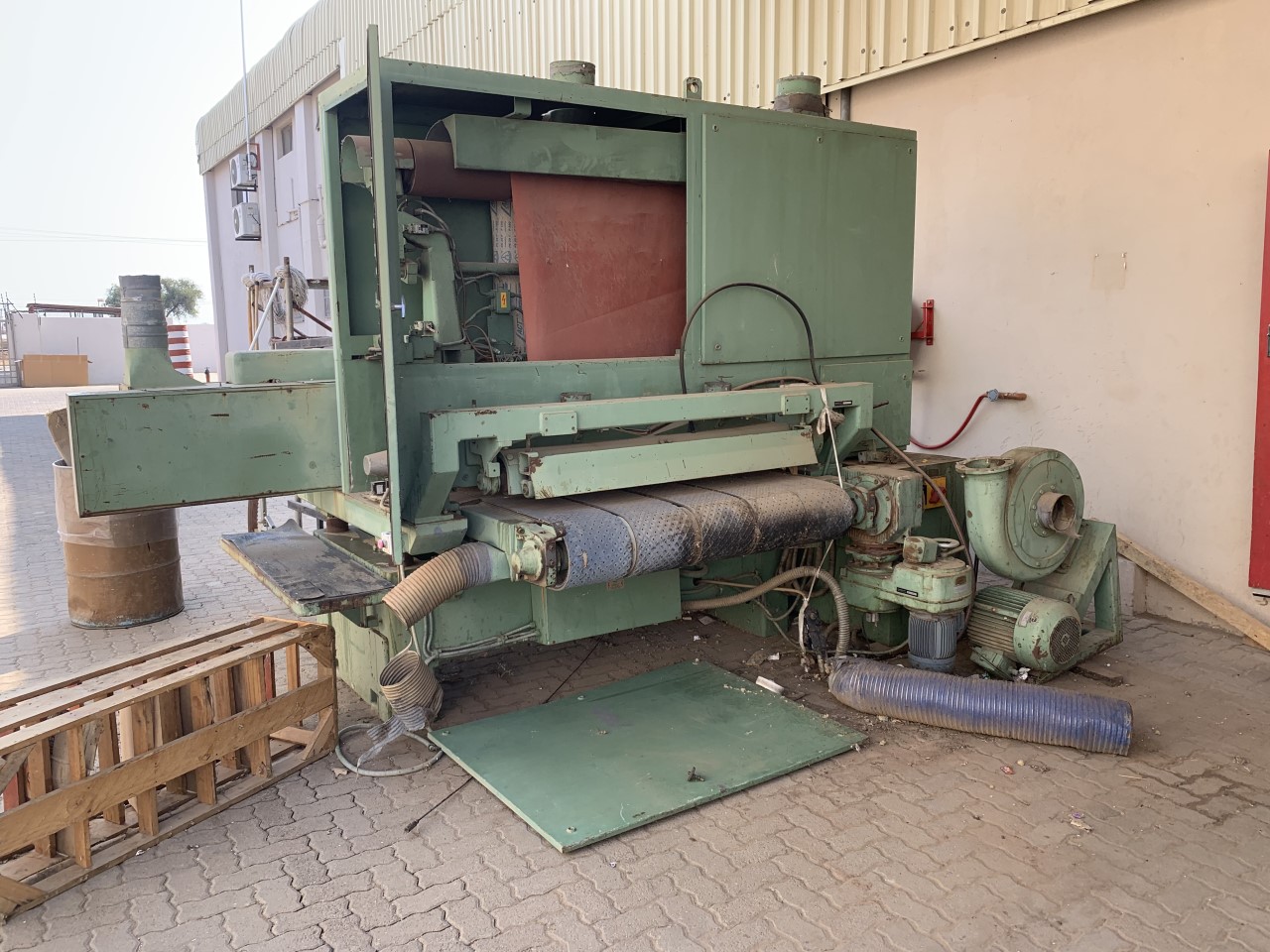

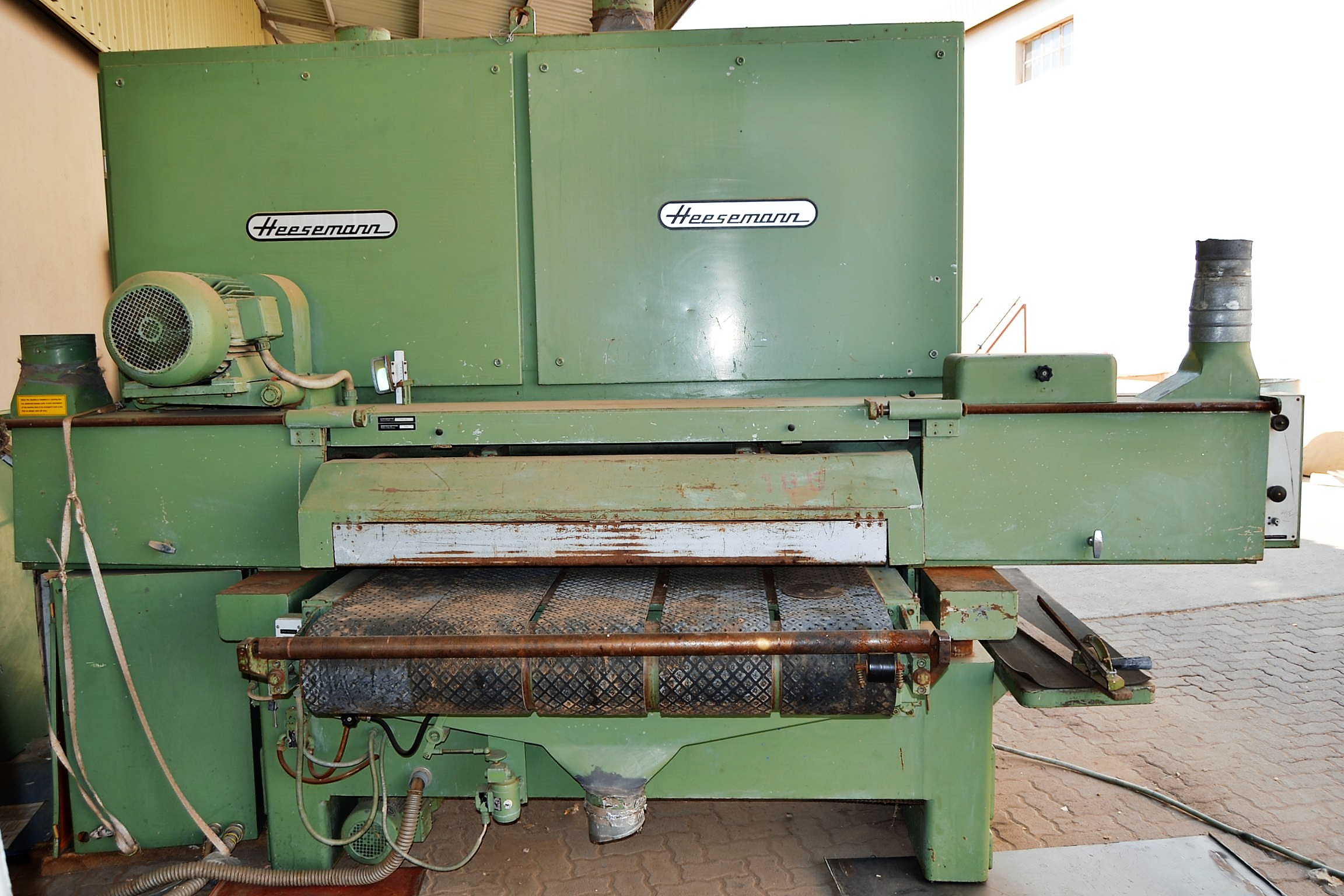

Cross & Longitudinal Widebelt Sanding Machine, HEESEMANN, 1300mm
Automatic Double-Belt Cross Sander
Make: HEESEMANN
Made in Germany;
Model: KSA 4;
Year: ca. 1992;
Cross sanding: Provides the best surface finish;
High capacity cross sanding with one machine;
Large area sanding across and with the grain;
Large of small workpieces;
Extra long widebelts for high performance
Working width: 1.300 mm, maximum 1.350 mm;
Working thickness: maximum 80 mm, digital readout;
Working height: Fixed, 920 mm;

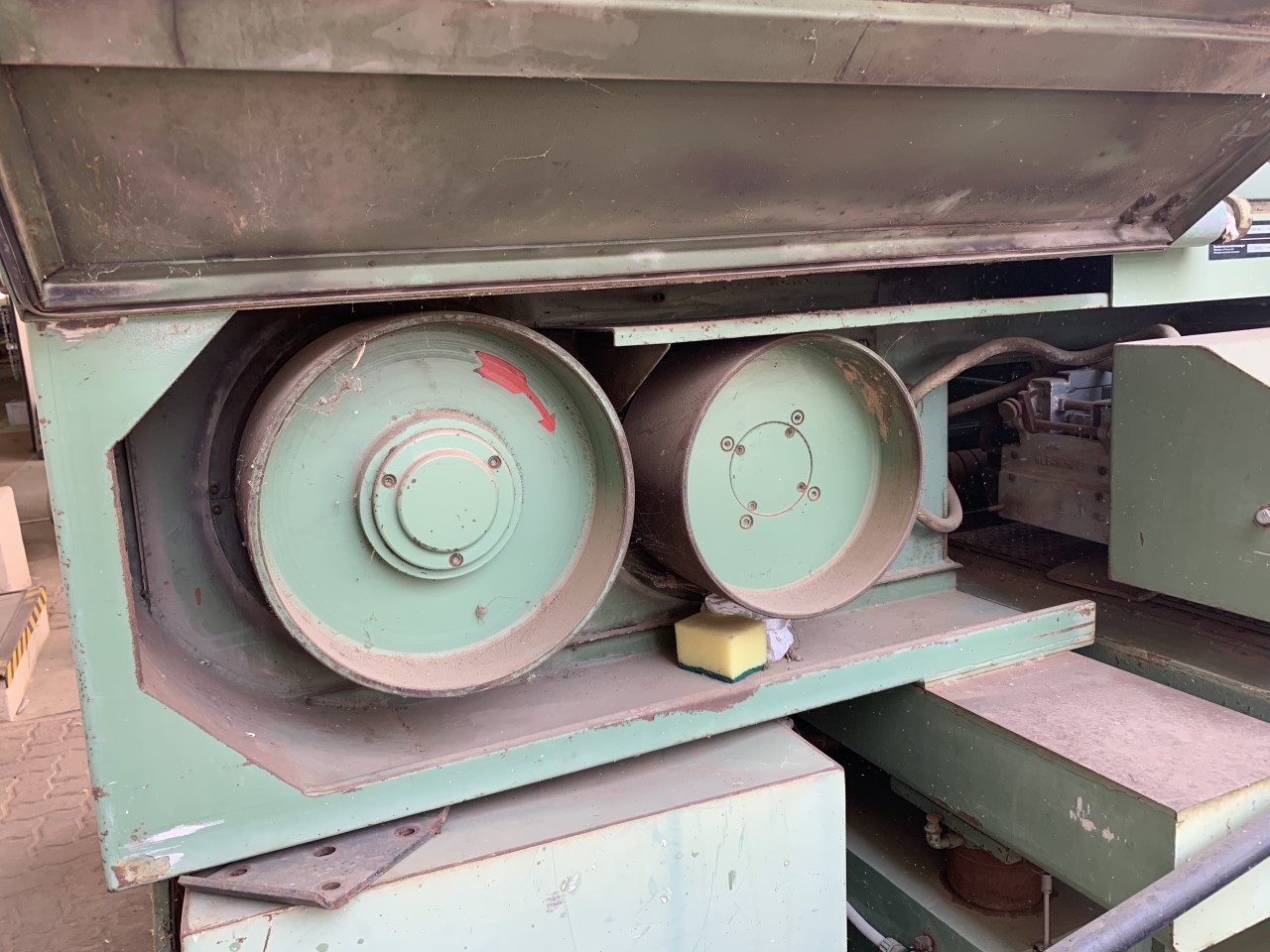

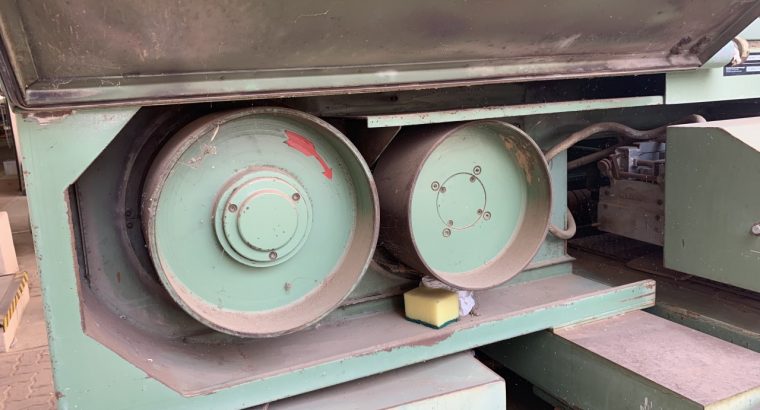

1st Unit: Cross Sanding, Narrow Belt, (Transverse Sanding);
2nd Unit: Longitudinal Wide Belt Sanding;
3rd Unit: Brushing, Cleaning Brush, top;
Cross Belt Motor: 2-speed, 13 / 17kW, 1470 / 2920 rpm, 29 / 35 Amp;
Cross Belt Running Speed: 12 + 24 m/sec (8 + 16 m/sec);
Cross Sanding Belt Size: 7.100 x 150 mm;
Cross Pressure Belt Size: 5.450 x 140 mm;
Cross Belt: Automatic oscillation;
Wide Belt Motor: 2-speed, 16.5 kW / 21 kW, 1480 / 2950 rpm, 34 / 45 Amp;
Wide Belt Running Speed: 8 – 12 – 16 – 24 m/sec;
Wide Belt Size: 3.250 x 1.400 mm;
Wide Belt: Automatic pneumatic oscillation;
Wide Belt Tensioning: Pneumatic;
Feed Table Belts: 5x Endless Multitrack Lamella (Slat), 255 x 5.450 mm;
Feed Table Speed: Variable 6-30 m/min;
Feed Table Motor: 7.5 kW;
Feed Table Width: 1.350 mm;
Feed Table Length: 2.550 mm, pneumatic tensioning;
Feed Table Vacuum: Suction fan, slip free feeding;
Electronic pressure bar control;
Automatic Thickness Tolerance Compensation: thickness variation by at least 2 mm;
Electronic workpiece sensing, for irregular shapes like round and oval tabletops;
Elastic large-area pressure bars
Other Motor: 11 kW, 2920 rpm;
Work piece contact sensing (tracing) rollers: spaced 40 mm;
Dust Removal Unit: high power blower, re-circulating air
Dust Extraction: Not included;
Weight: ca 4.500 kg;
Overall dimensions, W,L,H: 3.820 x 2.700 x 2.800 mm;
E.&O.E
Price: used, Good Working, ex Pietermaritzburg (KZN) warehouse: R148.000 + vat
