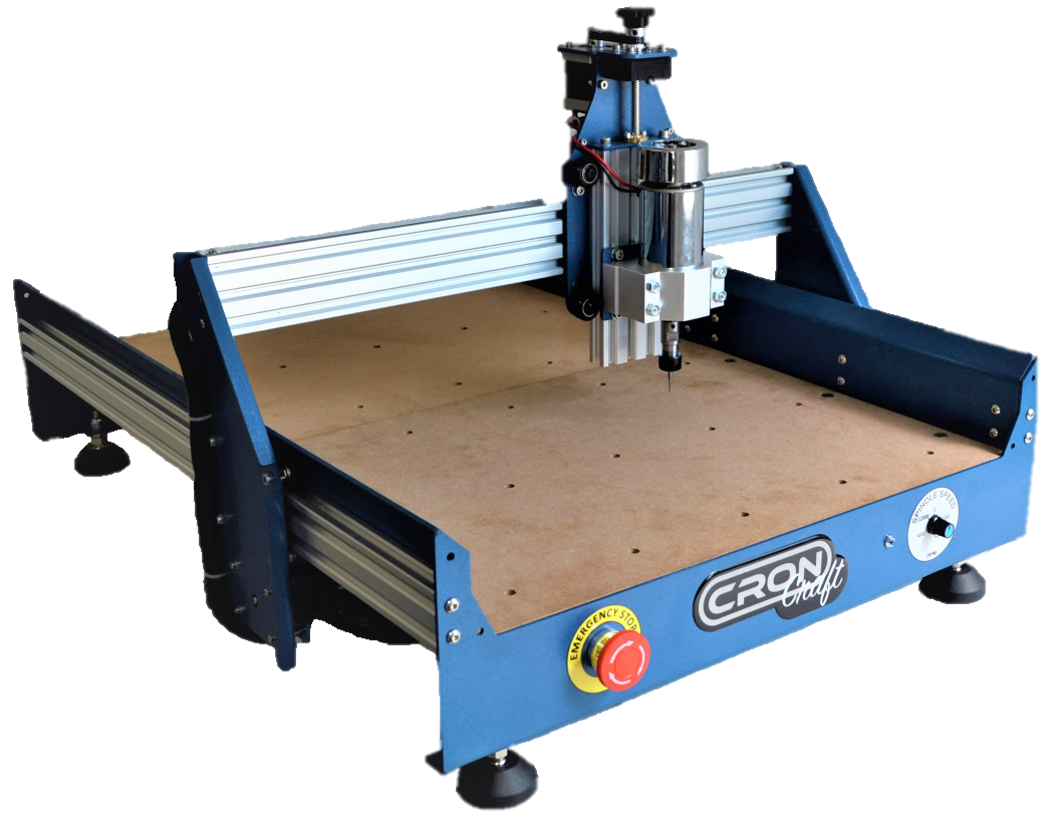

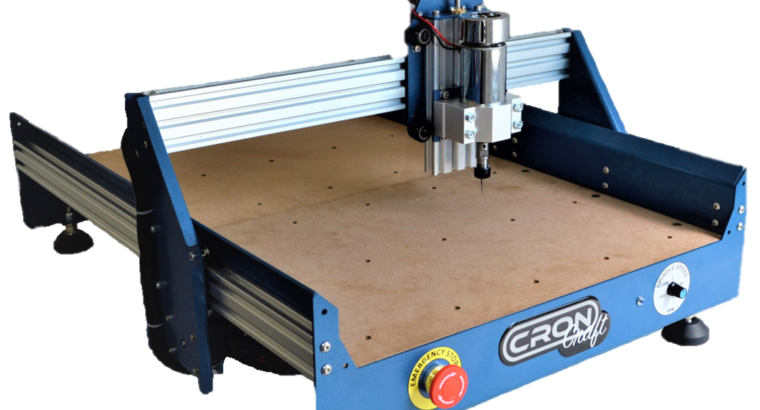

CRON CRAFT LARGE CNC MACHINE
The Cron Craft Large CNC machine kit is a small size, high quality CNC machine.
CNC has never been this easy! It comes with a 400W silent cut air cooled spindle, electronics, Z-Probe and cutting bits.
This kit is perfect for cutting wood, PCBs and perspex.
What is included:
All the parts you need to build the CNC machine
The wires are pre-soldered so that you can plug and play
Z-Probe for accurate Z homing
Power Cable
USB cable
Collet spanner
5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
Work piece clamps
What you will need:
Computer with internet connection
Assembly Tools
Machine specifications:
Cutting Area:
Large: 400 x 1000mm
Cutting height: 50mm depending on the type of cutting bit used
Machine size:
Large: 590 x 1165 x 460mm (W x L x H)
Machine weight: 15kg
400W silent cut air cooled spindle with ER11 collet
Spindle Speed: Variable between 0 – 12 000RPM
Collets included: 1/8′, 1/4′, 4mm, 5mm, 7mm
Maximum Feedrate: 3000mm/min
Positional resolution: 10 micron
Positional repeatability: 8 micron (No load)
Operating Temperature: 15-30 Degree C
Noise level, Spindle only: 60dB
Noise level, when cutting: <75dB
Connectivity: USB
Z-Probe: Included
Power Supply: 220V AC, 50Hz, 2.3A Max
Software: Easel (Included)
Machine needs to be assembled a easy to use assembling guide will be sent through.
Please allow 3-7 working days for the machine to be ready.
Please allow 3-5 working days for delivery – depending on the delivery address.
Please note that we deliver the machine without insurance, if insurance is required please request insurance fees.
