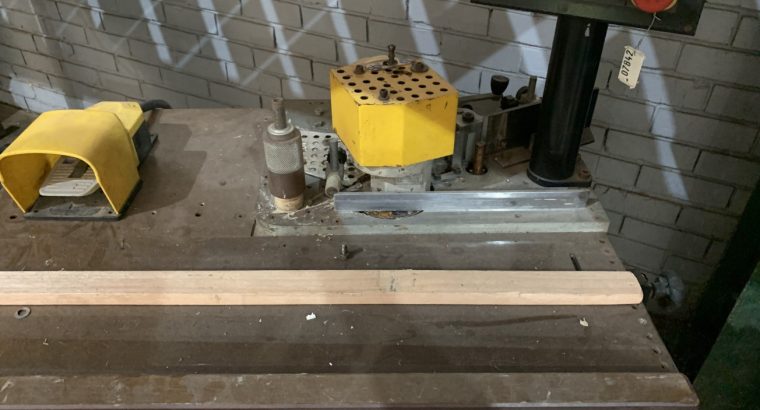

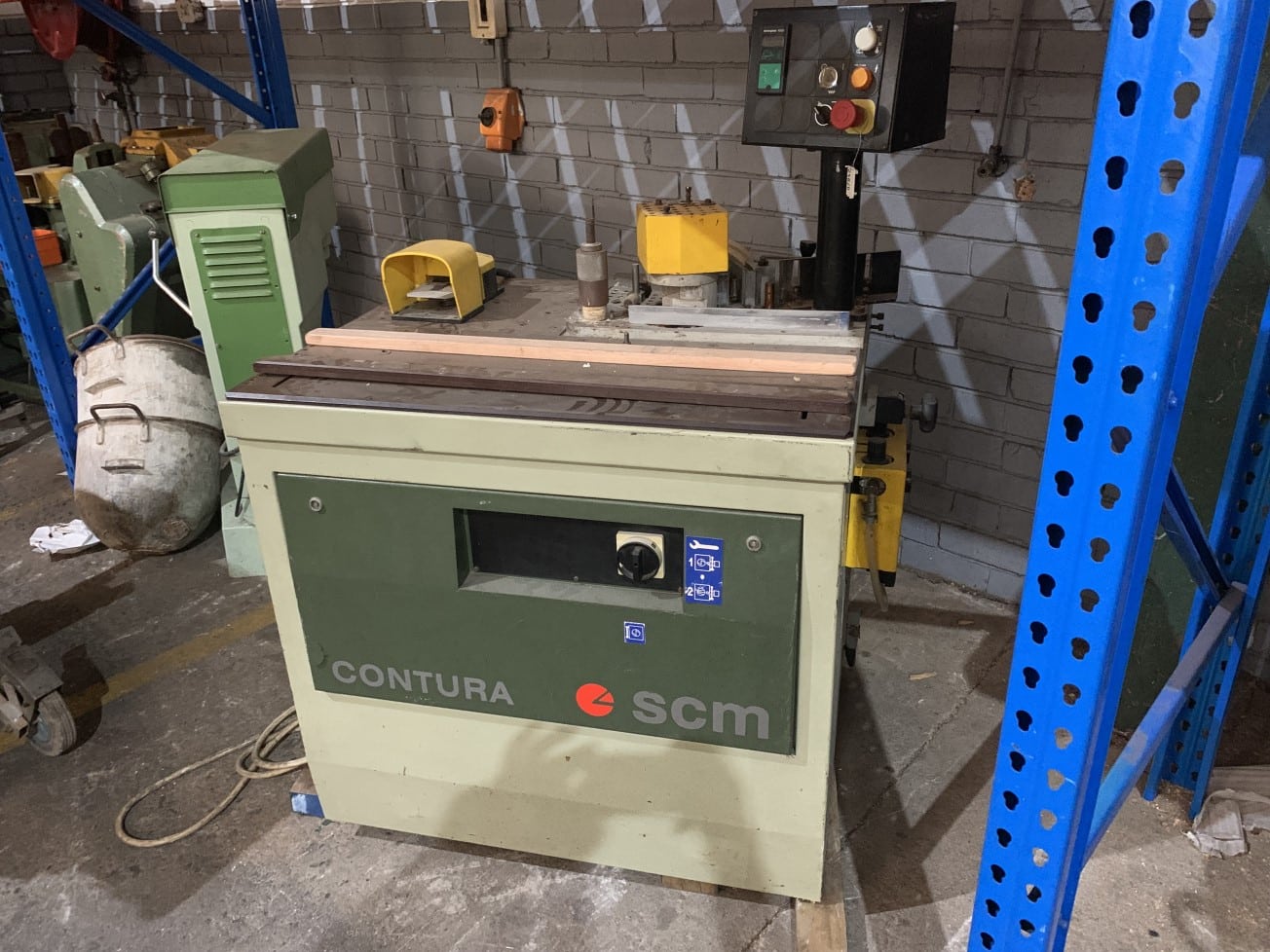

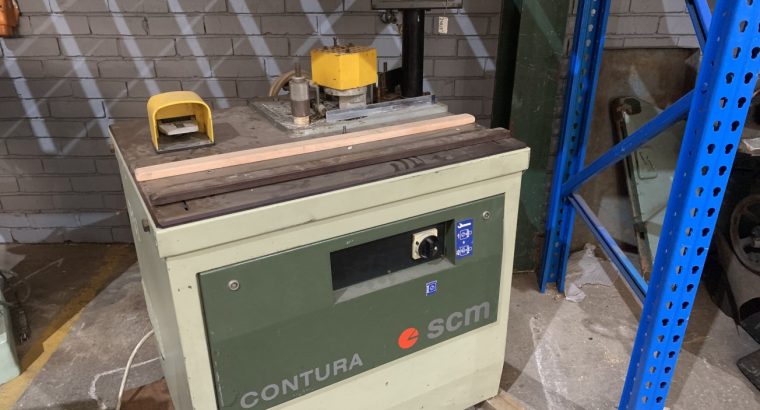

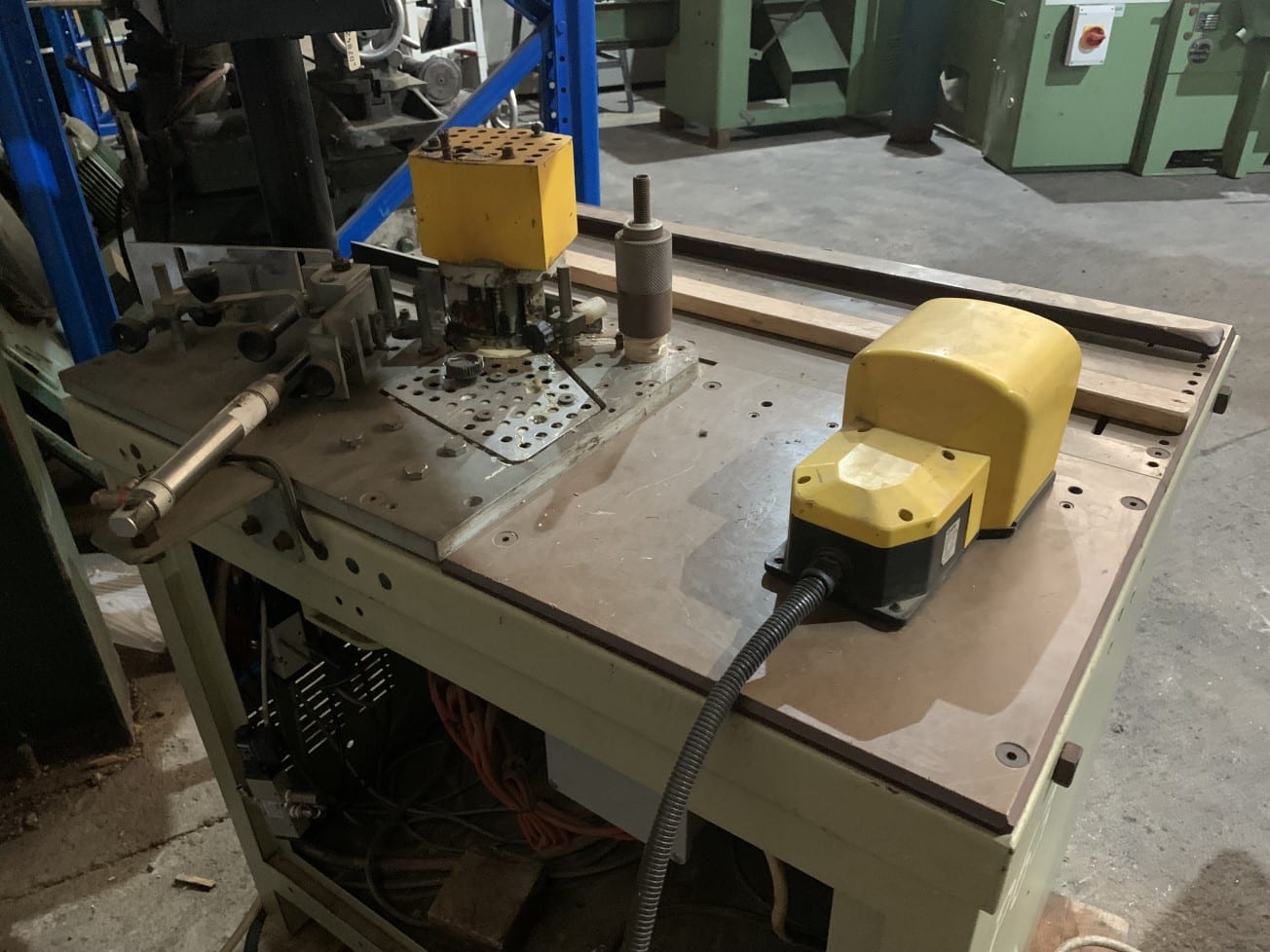

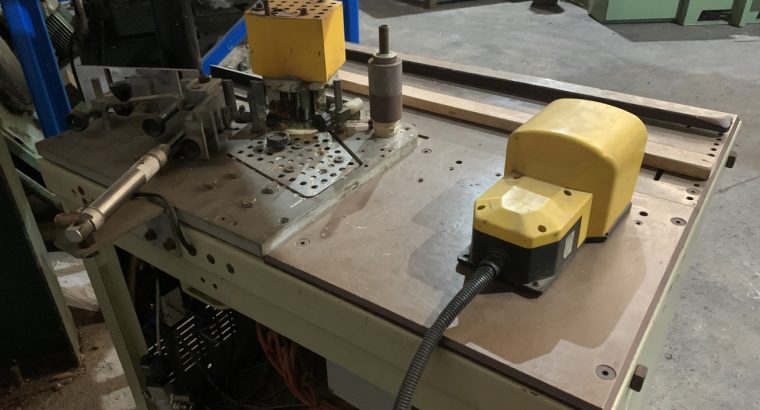

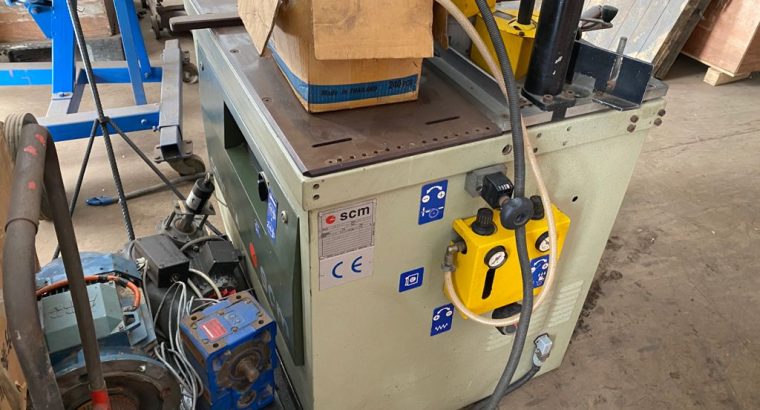

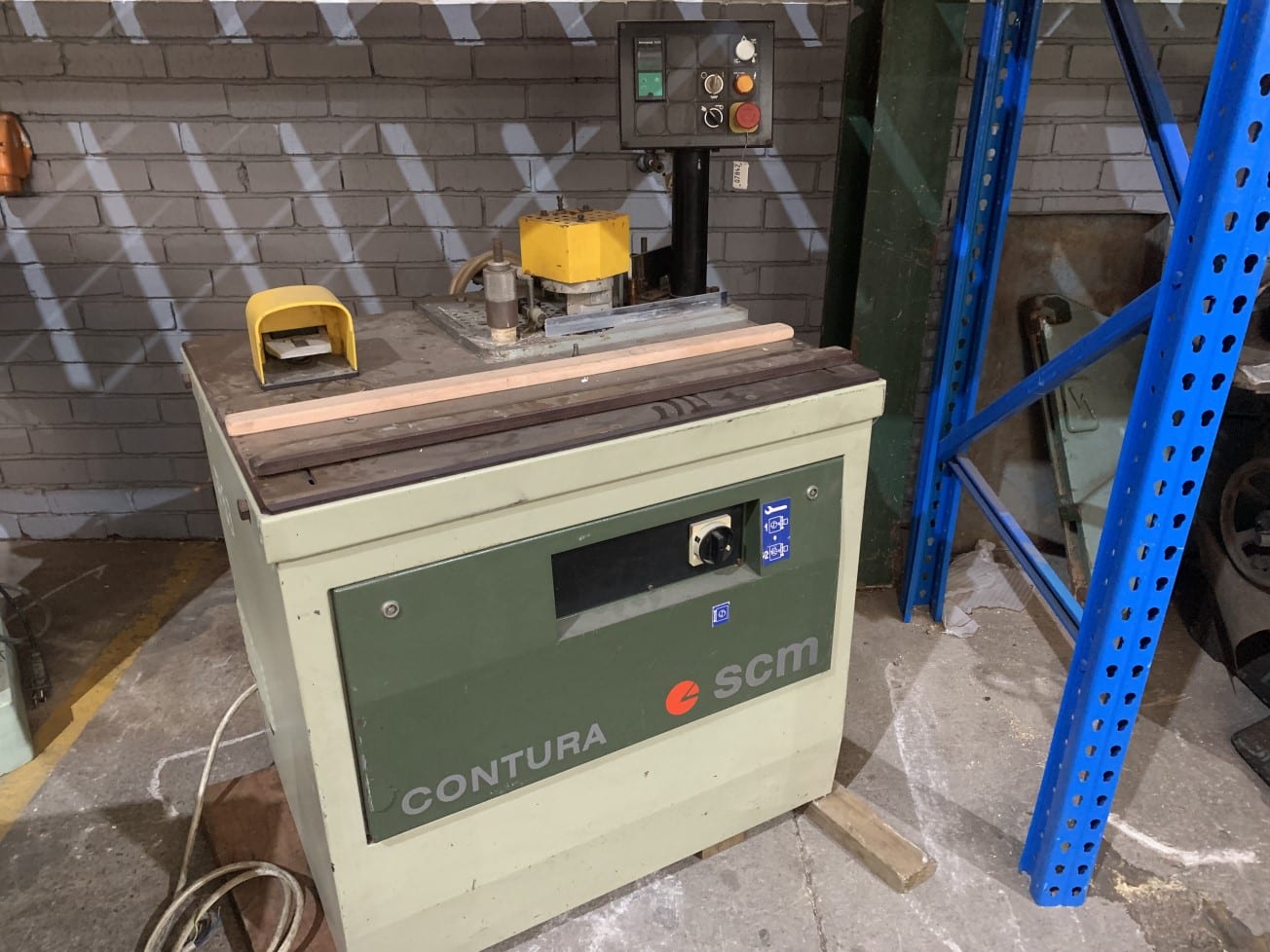

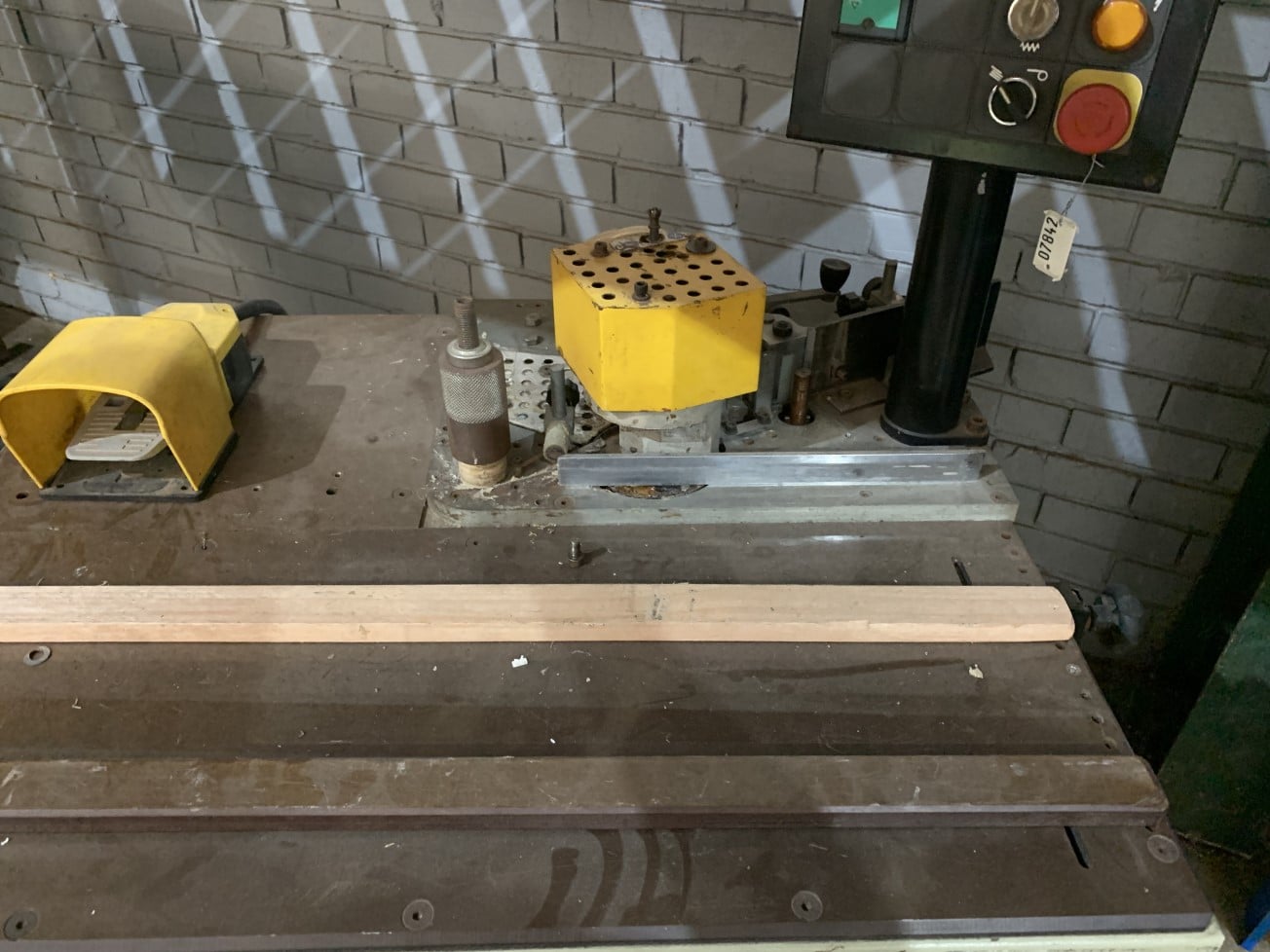

Contour Edge Bander, SCM, CONTURA
Categories: Edgebander
Make: SCM
Made in Italy
Model: CONTURA
Serial nr: AH/102483
Edging Thickness: 0.5 – 3.0 mm
Edging Width: 15 – 60 mm
Thickness 0.5mm – 1.0 mm: 60 mm width
Thickness 0.5mm – 2.5 mm: 50 mm width
Thickness 0.5mm – 3.0 mm: 45 mm width
Minimum board thickness: 12 mm
Maximum board thickness: 60 mm
Minimum width of the boards: 50 mm
Minimum length of the boards: 230 mm
Minimum Internal Radius: 30 mm
Minimum External Radius: 5 mm
Feed speed: 2 – 10 m/min
Electrical Connection: 4 kW, 380 Volt, 8 Amp.
Pneumatic Connection: 6 Bar
Roll Holder Table: Ø-600 mm
Working Height: 850 mm
Certified: CE
Overall Dimensions: 1.100 mm X 1.000 mm X 1.400 mm
Weight: 300 kg
Price: Used, Clean & Checked, ex Pietermaritzburg: R22.000 + vat
Roos Group (Pty) Ltd | Woodworking Machinery
Unit 5, Edmond Place Business Park, Camps Drift, 3201, Pietermaritzburg, KZN
Andrew Roos 082 756 5067 , an****@**********co.za
