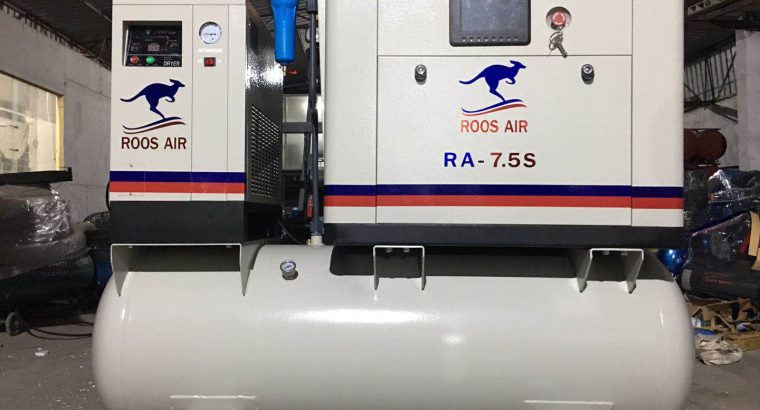

3 in 1, Screw Compressor & Air Dryer & Air Receiver, RA-7.5S, ROOS AIR, 7.5kW, 38CFM
Screw Compressor & Air Dryer & Air Receiver;
Make: ROOS AIR;
Model: RA-7.5S (3 in 1);
Category: Compressor
Screw Compressor
Working pressure: 8 Bar = 0.8 Mpa;
Air capacity: 38 CFM = 1.1 m³ / min;
Electric motor: 7.5 kW = 10 Hp, 380 Volt, 2900 rpm, 50 Hz;
Motor rank: IP54;
Motor connection: Direct drive;
Air-end: GU, Single Stage
Lubrication: Shell, Corena S2R, Viscosity Grade 46;
Oil volume: 5.5 Lt;
Oil change: 4.5 Lt;
Cooling method: Air Cooling;
Ambient temperature: +15 °C;
Air outlet pipe diameter: ½” = 12.7 mm;
Air Dryer
Drying Capacity: 53 CFM = 1.5 m³/min;
Working air pressure: 0.4 – 1.3 Mpa = 4 – 13 Bar;
Dew point: 2-10 ⁰C;
Motor power: 0. 5 kW, 220 Volt, 50 Hz;
Air Internal Temperature: ≤ 80 ⁰C;
Outside Temperature: 6 – 38 ⁰C;
Air Receiver
Volume air: 500 Lt = 0.5 m3;
Working air pressure: 1.2 Mpa = 12 Bar;
Testing pressure: 1.4 Mpa = 14 Bar;
Tank material thickness: 5 mm;
Warranty: Compressor 1 year / Air-end 3 year;
Certification: ISO9001;
Overall dimensions: 1.900 x 760 x 1.560 mm;
Weight: 480 kg;
E.&O.E;
Price: R79.300 + vat
