ENGINE MAKE PERKINS
Model 403A-11G1
Tier Rating Tier 1
Engine Speed RPM 1500
Engine Power Output at
rated rpm
kWm 9.5 – HP 12.7
Cooling Radiator Cooled
Aspiration Natural
Total Displacement Liter 1.131
No. of Cylinders and Build 3-Inline
Bore and Stroke mm x mm 77 x 81
Compression Ratio 23:1
Governor Mechanical
Fuel Consumption (L/hr) Full Load 3.0
75% Load 2.3
50% Load 1.7
Fuel Tank Capacity
(Non-UL)
Liter 73 Open / 100 SAE
Oil Capacity Liter 4.9
Coolant Capacity Liter 5.2
Radiator Cooling Air m³/min 38

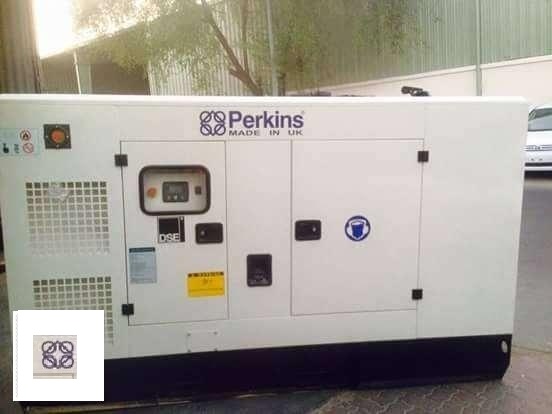

SOUND ATTENUATED GENERATOR
DIMENSIONS: (LxWxH) mm 1932 x 928 x 1308
DRY WEIGHT: 632 kg.
Model: PERKINS
Genesis Gen is the leading Dealer of Perkins, Yanmar, Cummins and Hyundai powered diesel generators in South Africa. And we also offering easy installations.
